Solar powered vent

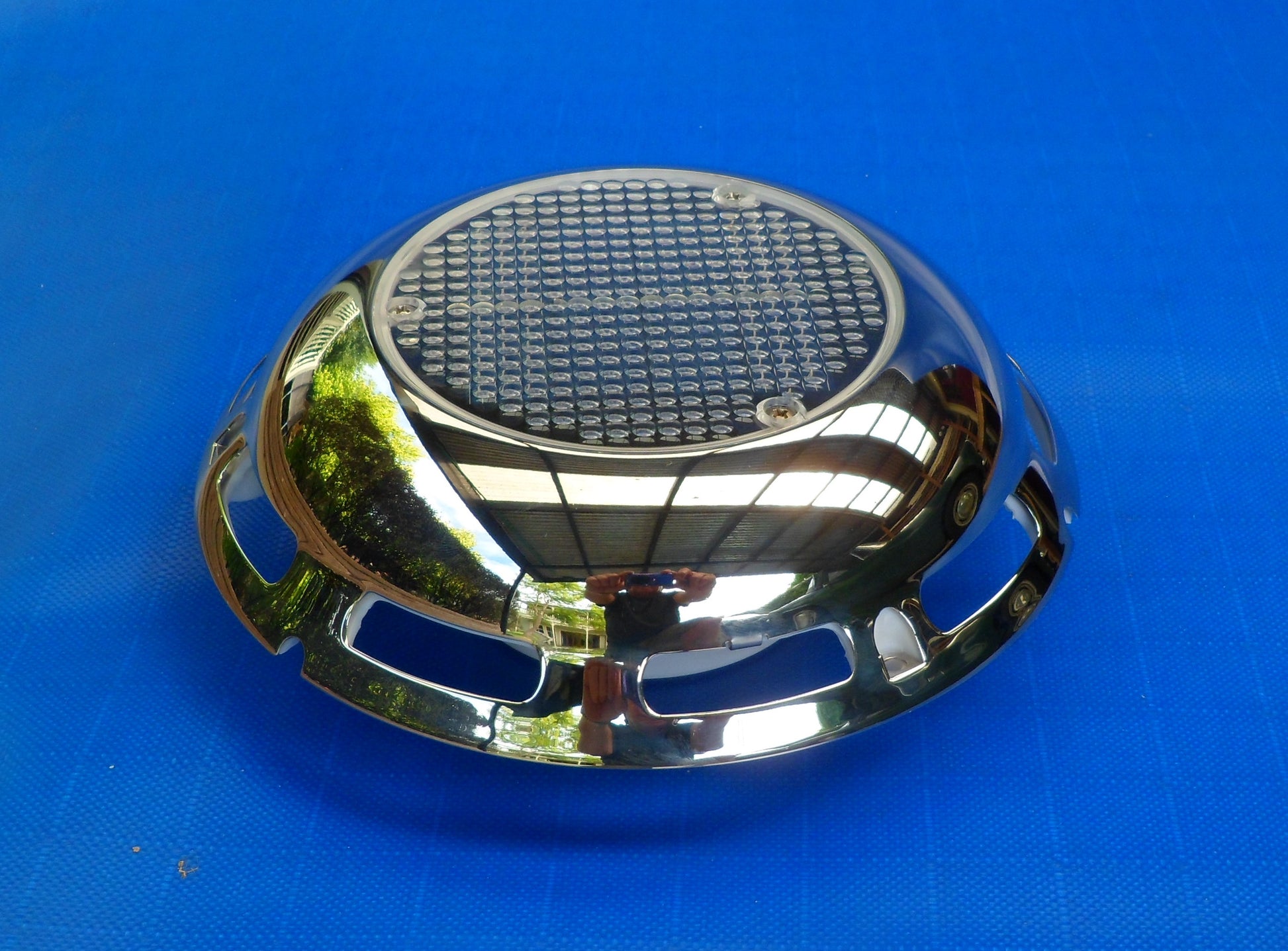

Solar vent with stainless steel cover. Designed to fit on a flat surface such as a cabin top, deck or roof.
The vent is permanently open and during daylight the airflow is increased by a solar powered electric fan. Rain and spray is deflected from entering the vent by a series of baffles.
Fan moves 25CM air per hour in direct sunlight.

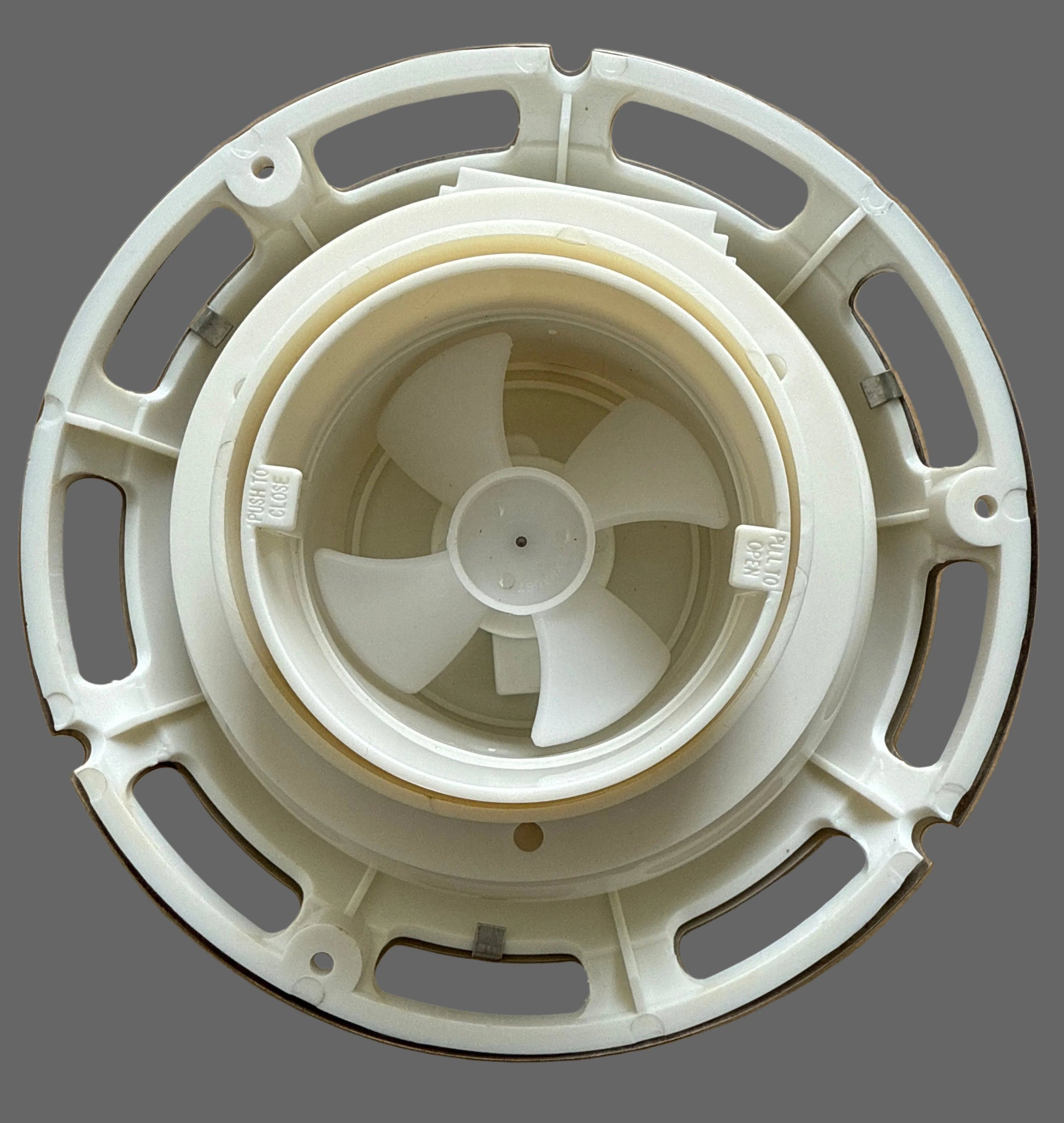

The fan unit is housed in a 50mm deep x 85mm diameter section that drops into the hole cut out.
The unit comes with a deck sealing gasket and a trim ring to fit around the underside of the unit inside the cabin.
Comes with interchangeable intake or exhaust fan blades.
Removable fly screen in base of unit.

Overall diameter 190mm
Height above deck 45mm
Depth below deck surface 55mm.
Hole cut out size 96mm
Trim ring inside diameter 95mm, outside 125mm
Fan size 75mm
Weight 420grams

Part no; 10285 C2
