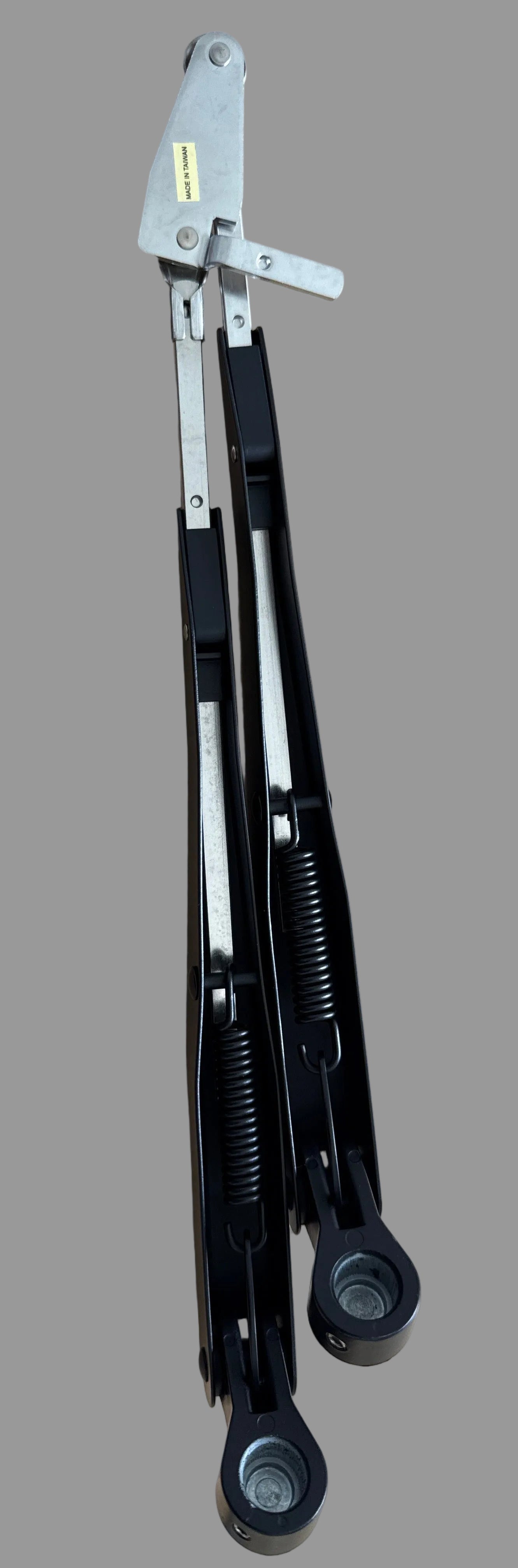

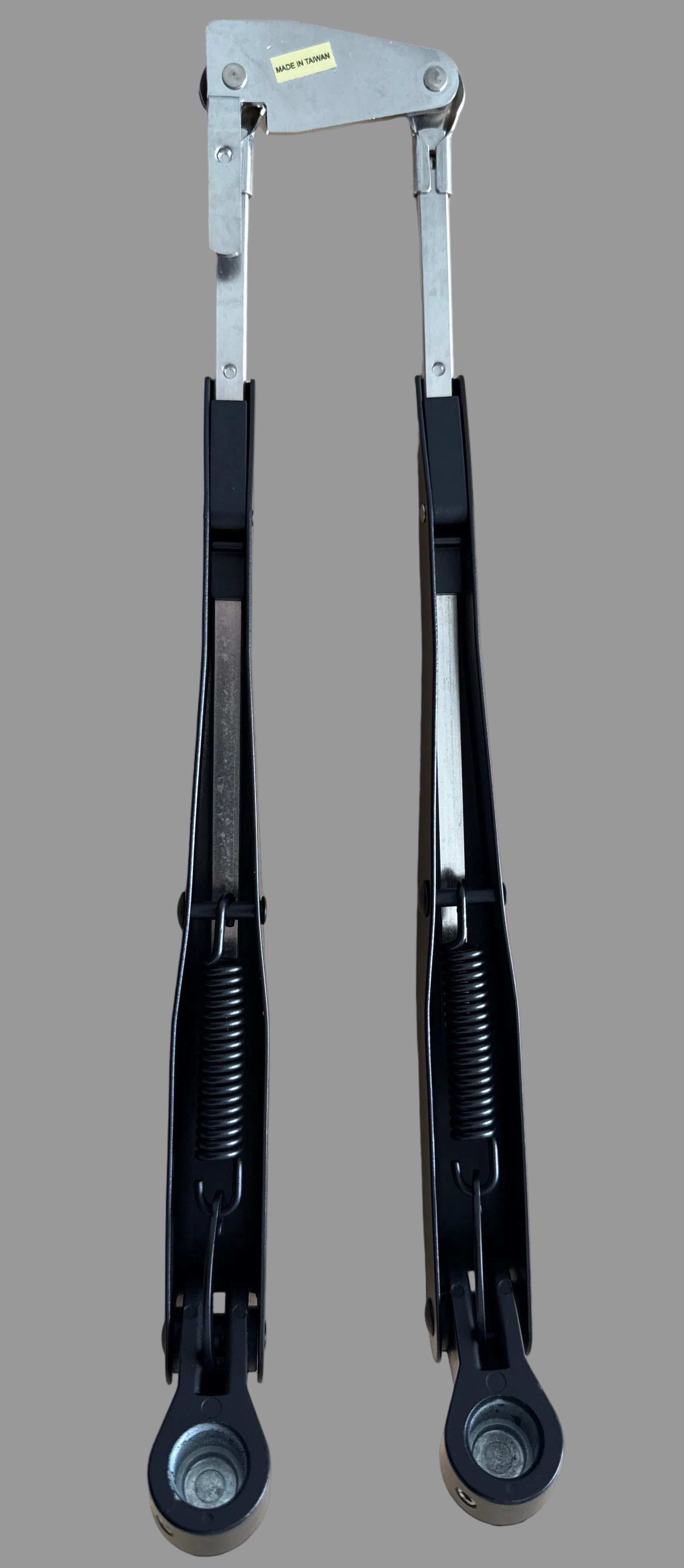

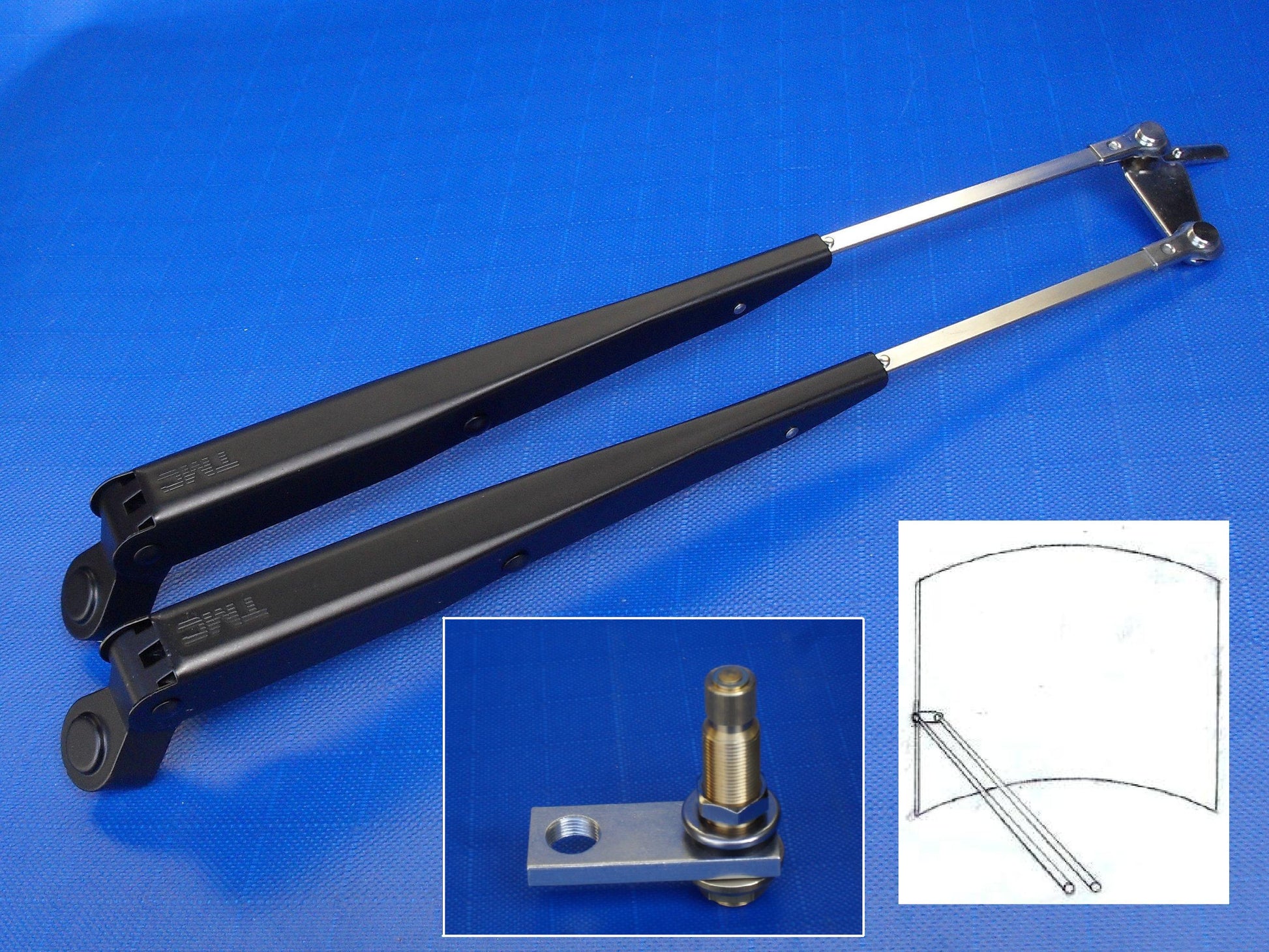

Pantograph Marine wiper arms adjustable splined

Double pantograph arm that allow the wiper blade to travel in a sweep across the windscreen, giving a greater area of visibility.

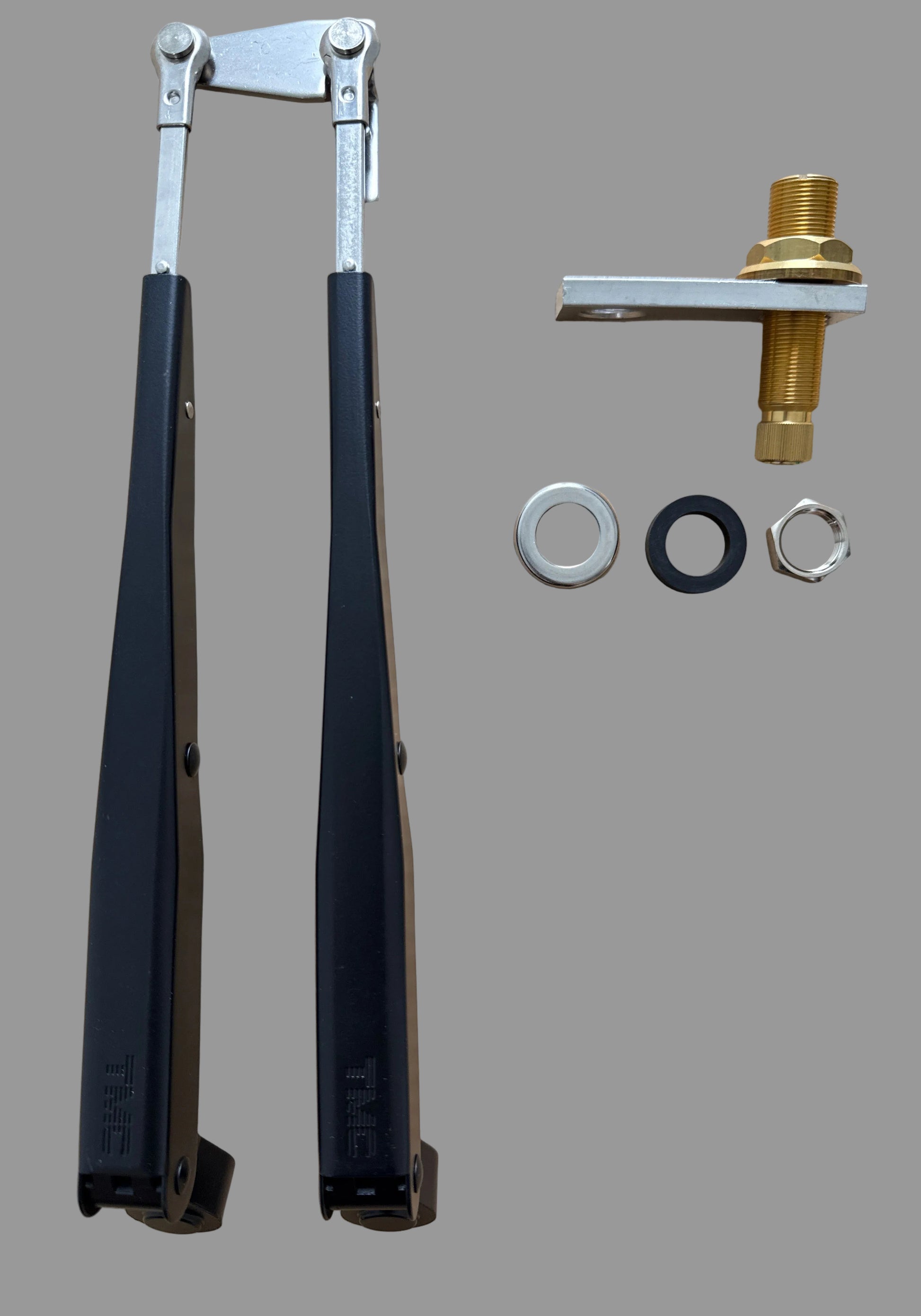

This kit includes the second spindle and attachment plate.
The arms are stainless steel with alloy splines that attach to the wiper motor shaft and second spindle. The lower part of the arm has a matte black finish.
The upper part of the arms slides in and out of the lower part making them fully adjustable.

Suits the wiper motors with part numbers 10065/6 and 10275/10292
Suits wiper blades part numbers 10073/4/5 and 10336/7/8
Arm length 370 - 470mm or 330 - 425mm
Spline diameter 13.5mm
Attachment plate hole centres at 45mm
Spindle thread diameter 16mm
Adjusts to fits bulkhead up to 32mm
Weight 600grams

Part no; 10334 or 10335
