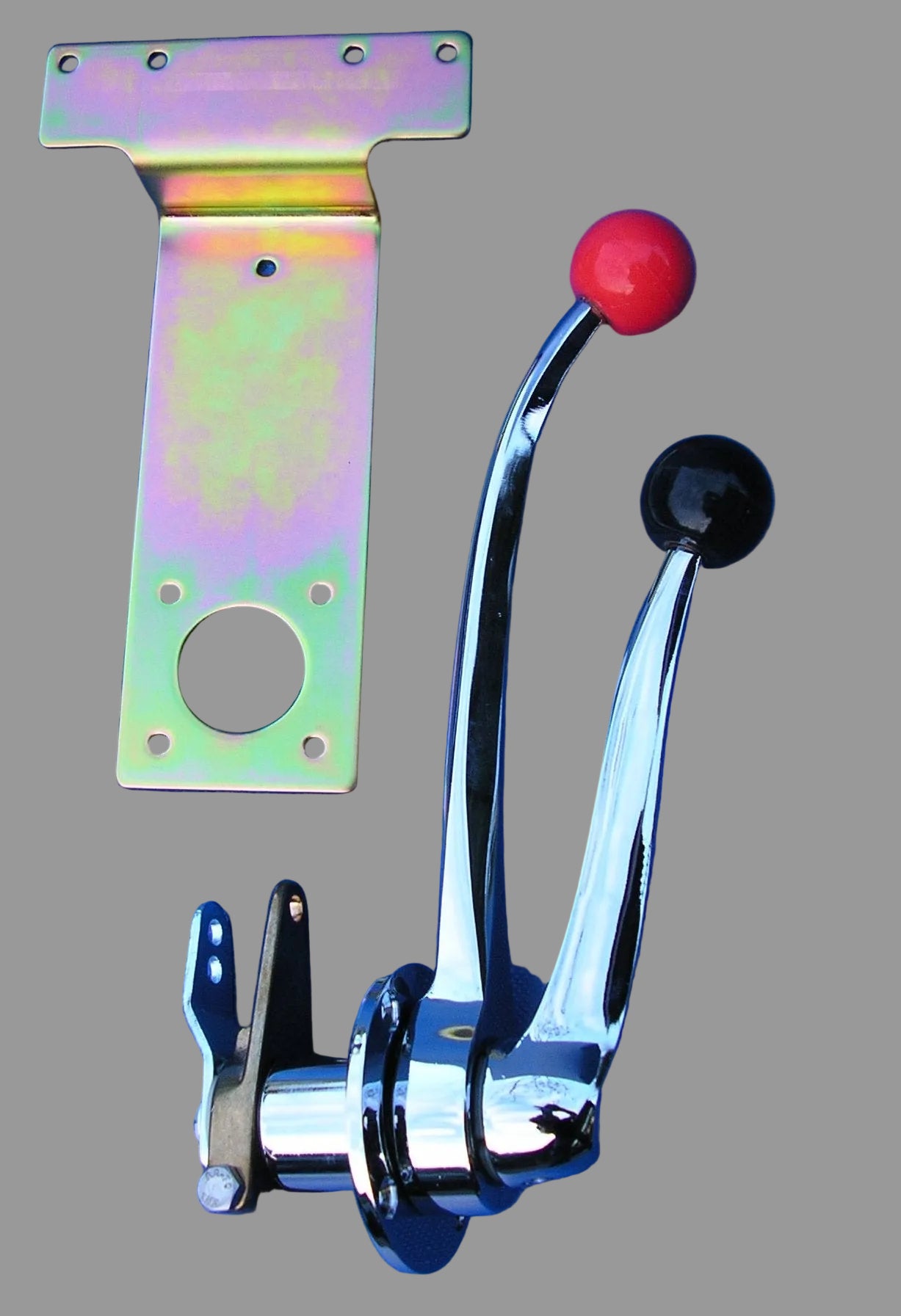

Marine Engine Control Lever side mount 2 lever

Robust side mounted double lever control for inboard or outboard motors. Designed for use with Morse type cables. Two levers, one for throttle the other for gears. Levers and exterior flange are chrome plated brass.
Longer lever with red knob has 360 degrees of movement Positive locating ball catch at 0 degrees, 45 degrees forward, and 45 degrees back.
Shorter lever with black knob has 360 degrees of movement. Knobs are interchangeable.
Includes mounting plate & fixing bolts, cable clamps and inner cable connectors.

Red handle 230mm to centre
Red operating lever 53mm centre to centre
Black handle 160mm to centre
Black operating lever 37 or 46mm centre to centre
Mounting flange diameter 64mm
Mounting plate 200mm x 115mm x 30mm depth
Mounting plate centre to cable clamps 160mm
Suits bulkhead to 13mm Thickness
Weight 1.75 kilos

Part no; 10256 C1
