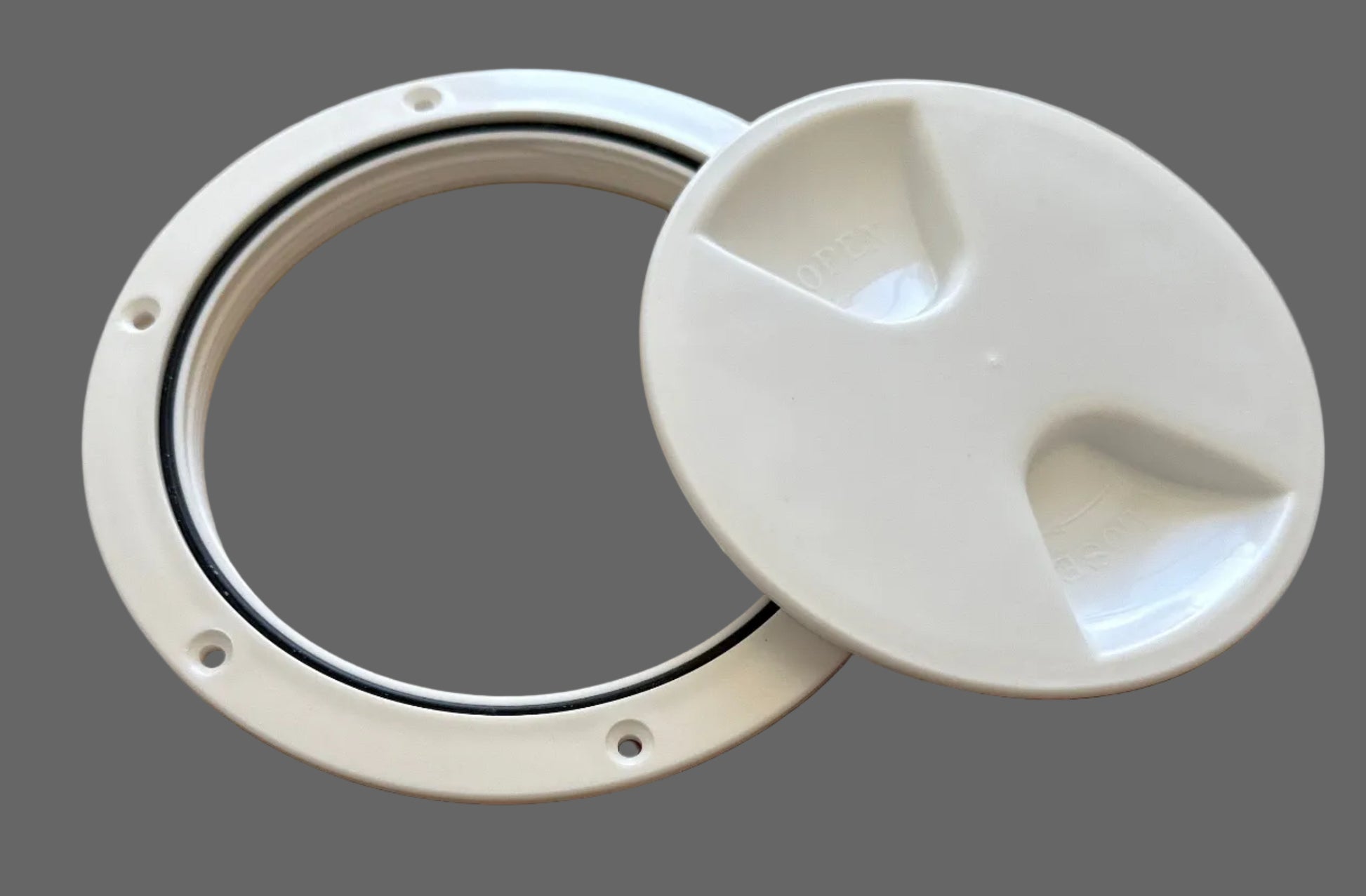

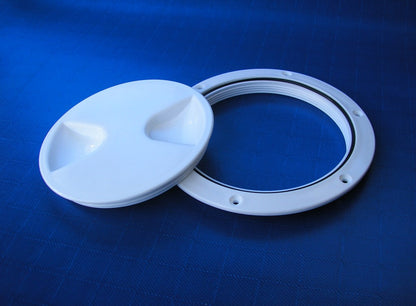

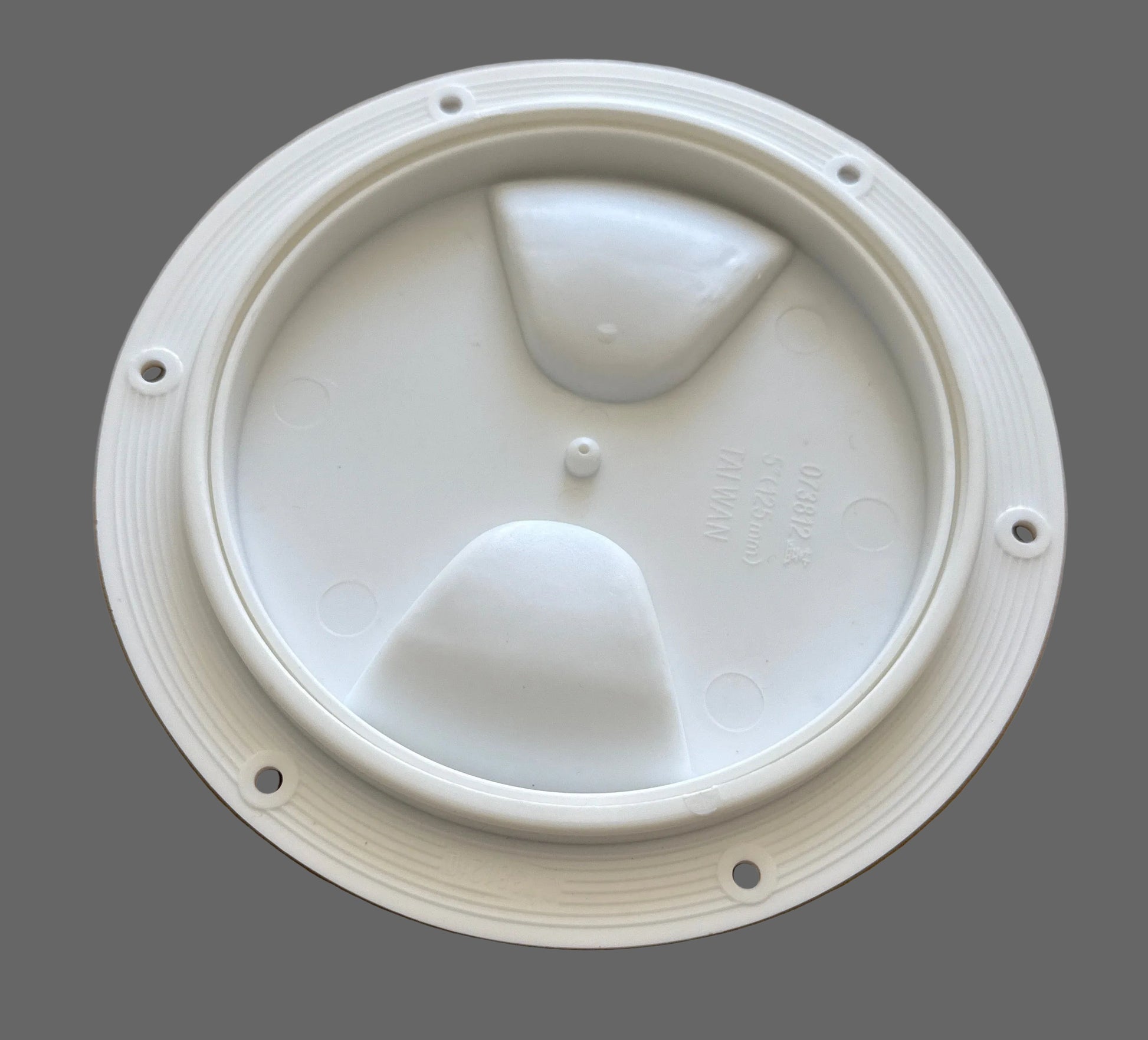

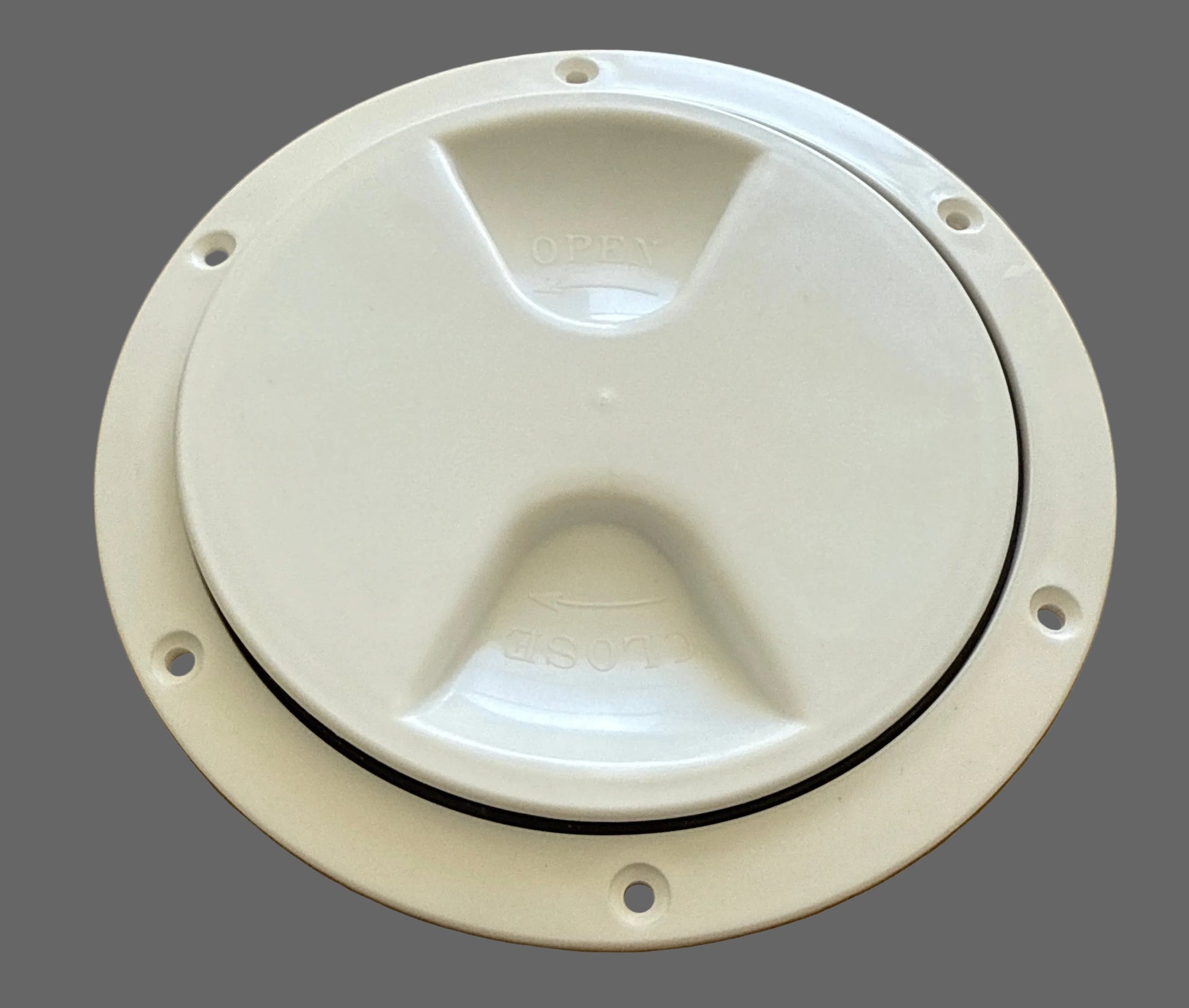

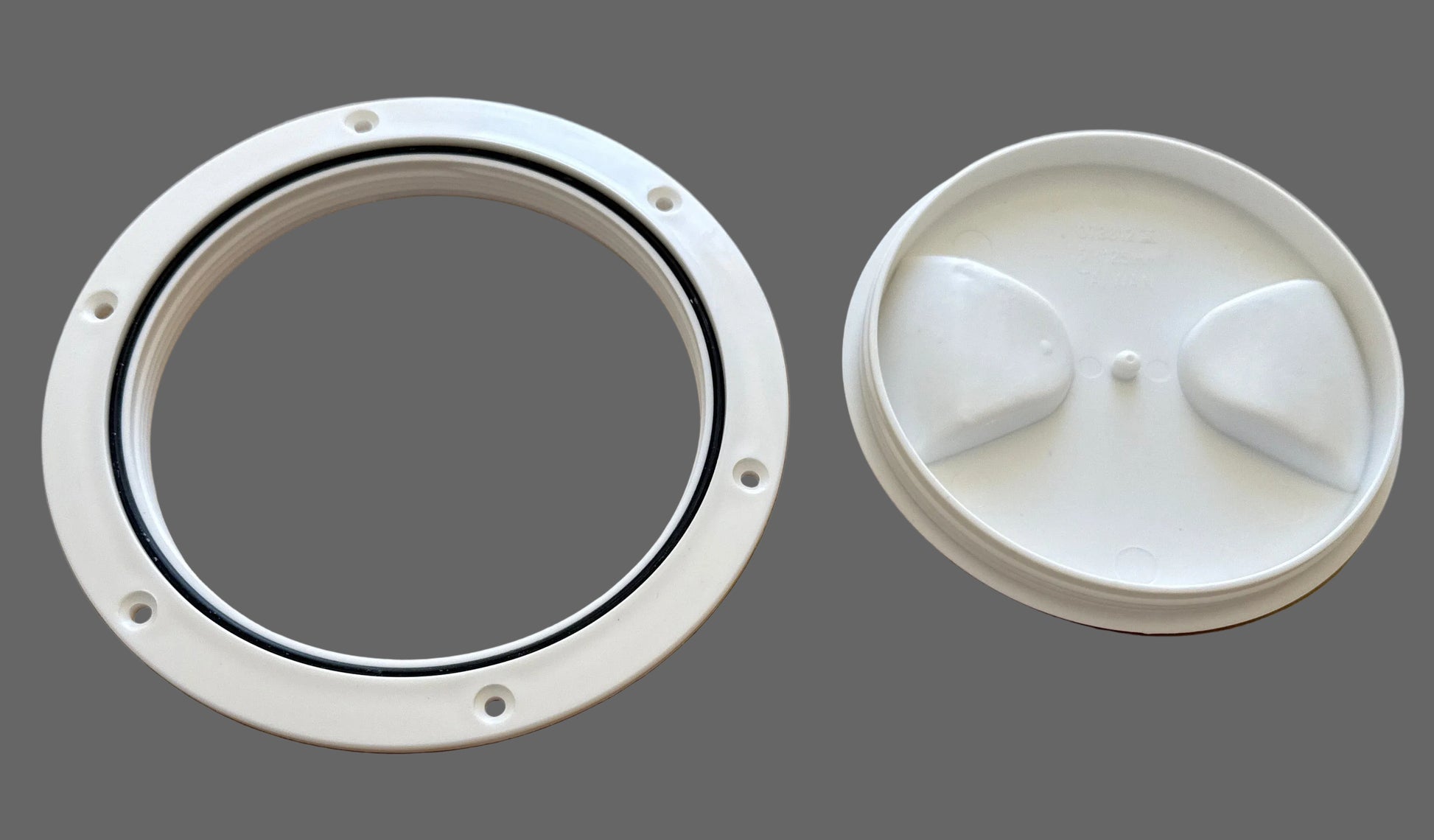

Inspection Port - plastic

Inspection port, popular screw in style with 6 fixing hole flange and rubber O-ring for optimum water resistance.
Great for tidying up access holes to awkward areas. Available in different sizes.

Aperture diameter 100mm

• Lid diameter 112mm
• Flange diameter 145mm
• Cut out size 112mm
• Flange recess 10mm
• Weight 67 grams each


Aperture diameter 125mm

• Lid diameter 136mm
• Flange diameter 169mm
• Cut out size 137mm
• Flange recess 10mm
• Weight 95 grams each

Aperture diameter 150mm

• Lid diameter 165mm
• Flange diameter 205mm
• Cut out size 164mm
• Flange recess 10mm
• Weight 140 grams each
