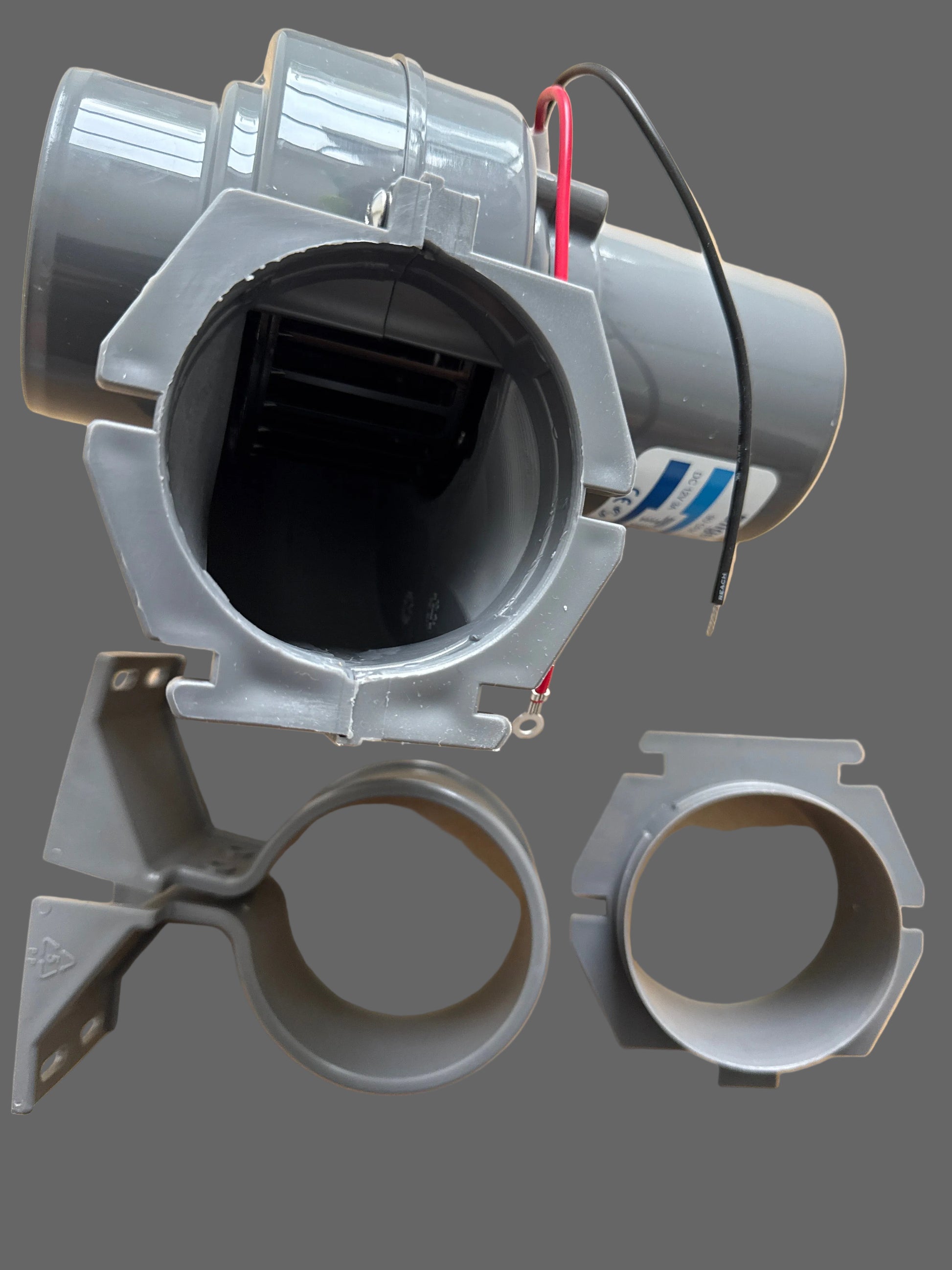

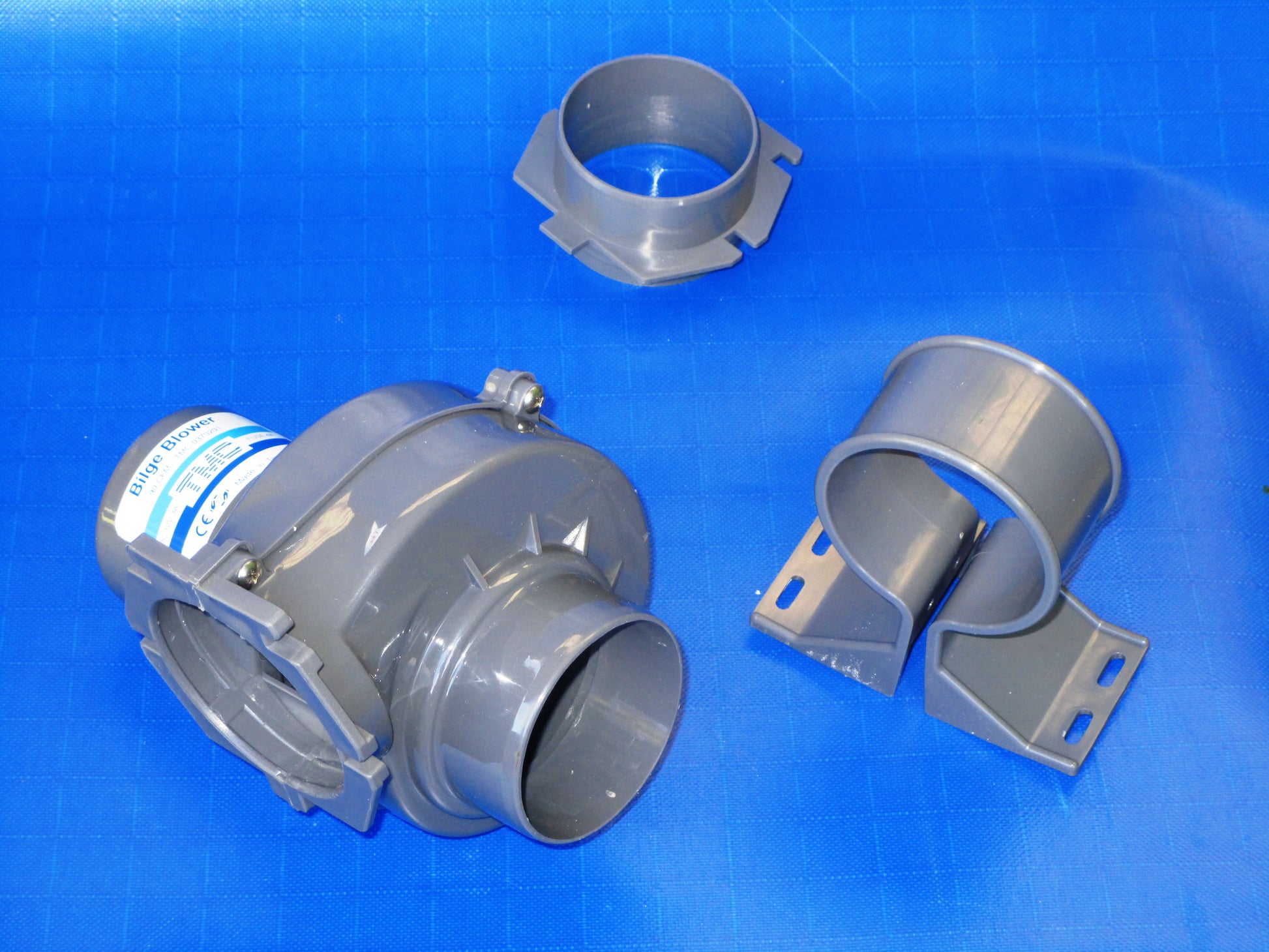

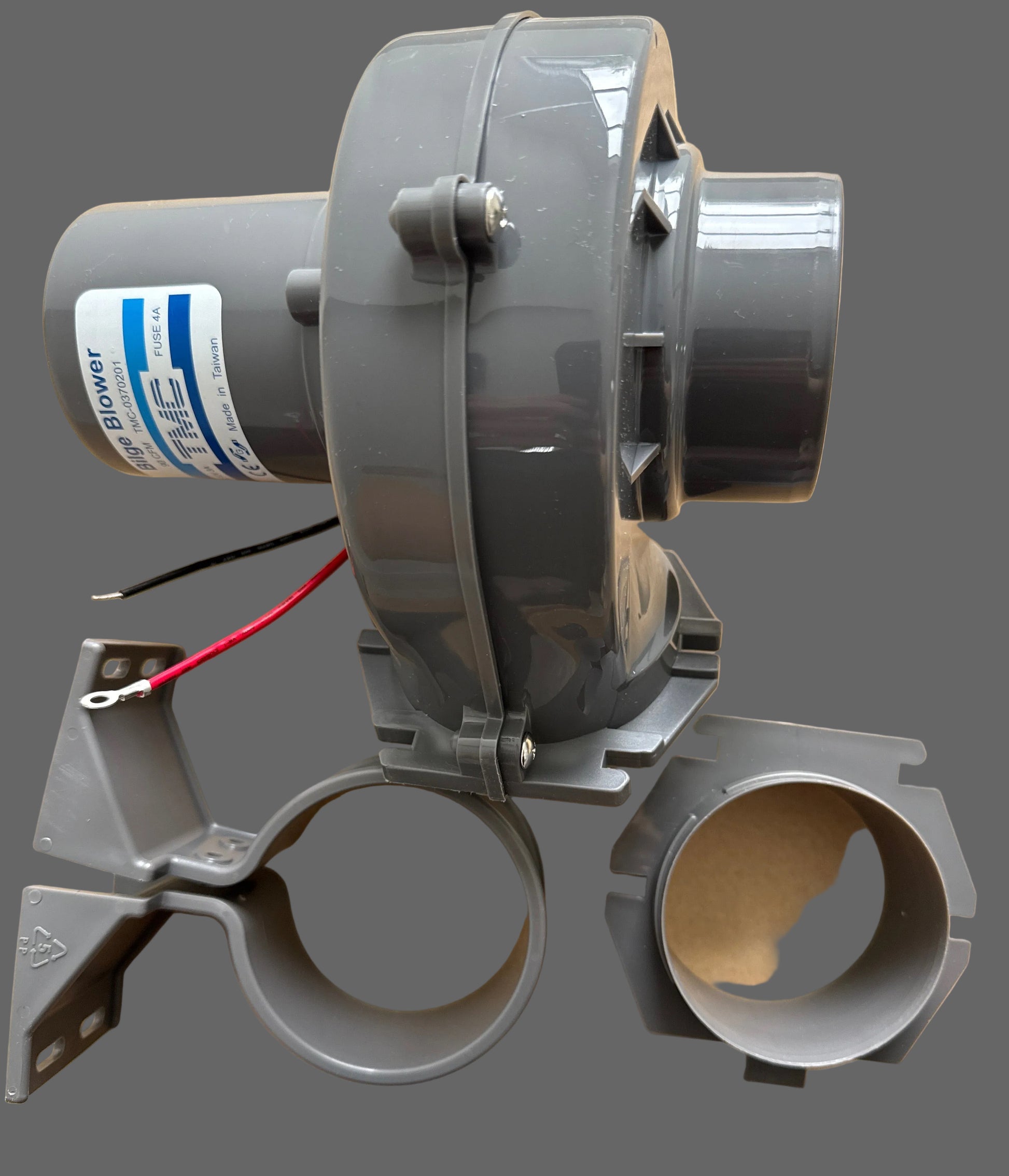

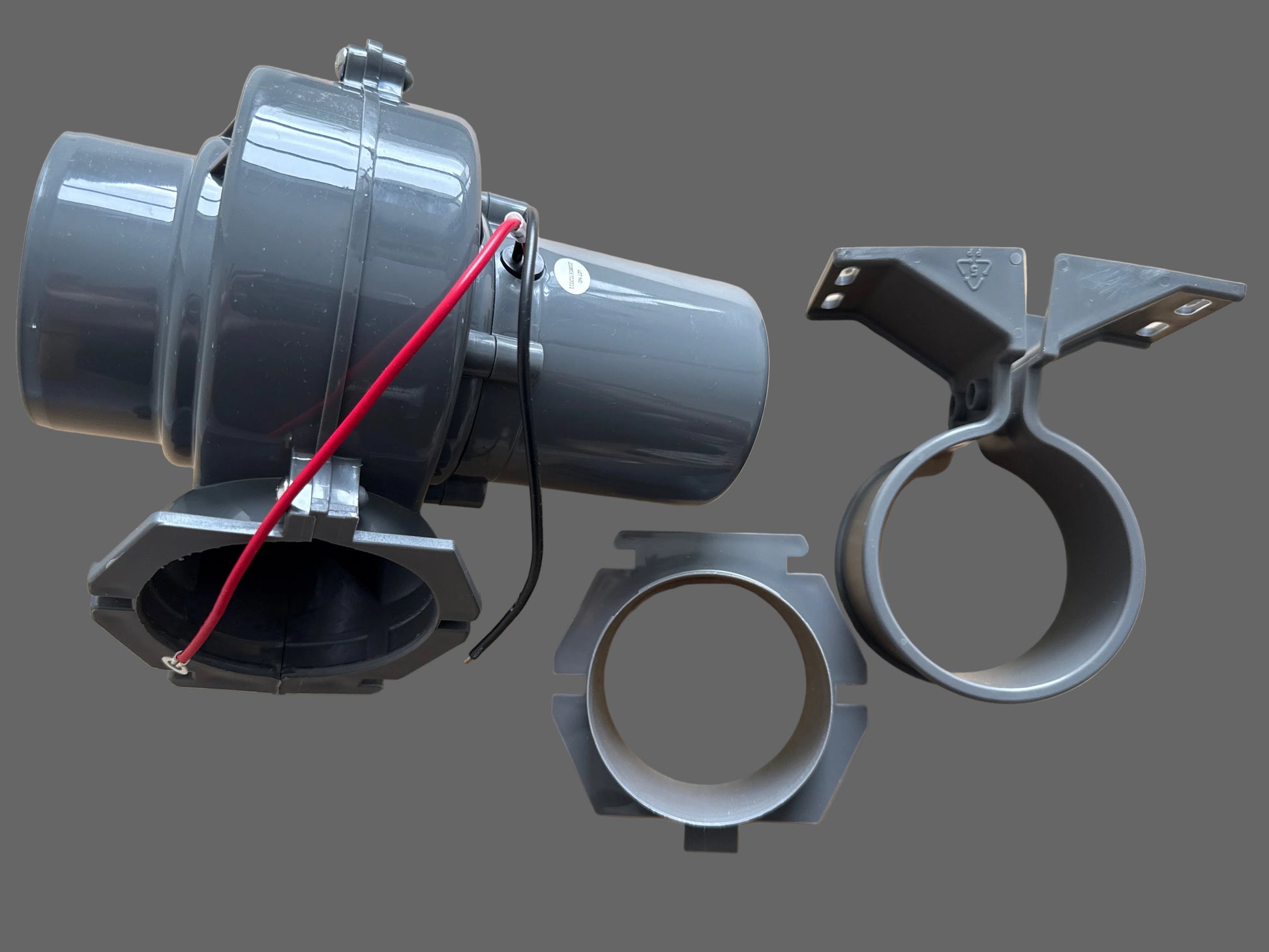

In Line Blower 90 degrees

Spark proof, lightweight plastic housing with 4 fixing points on outlet flange to cover a 75mm hole. Inlet to take 75mm duct / hose.
Includes flange sleeve to allow 75mm hose to be fitted to the outlet.
Complete with adjustable mounting bracket and fixing screws
Designed to ventilate boat engine compartments and bilges.
Also used as an extractor fan to ventilate toilets, showers and galleys in boats and motor homes

Air capacity 90CFM
12volts 3 amps
Inlet pipe 75mm diameter
Width200mm. End of motor housing to end of inlet.
Height 160mm. Top of flange to bottom of fan housing
Depth 140mm. Front of flange to end of fan housing
Weight 650 grams

Part no; 10366  C1
