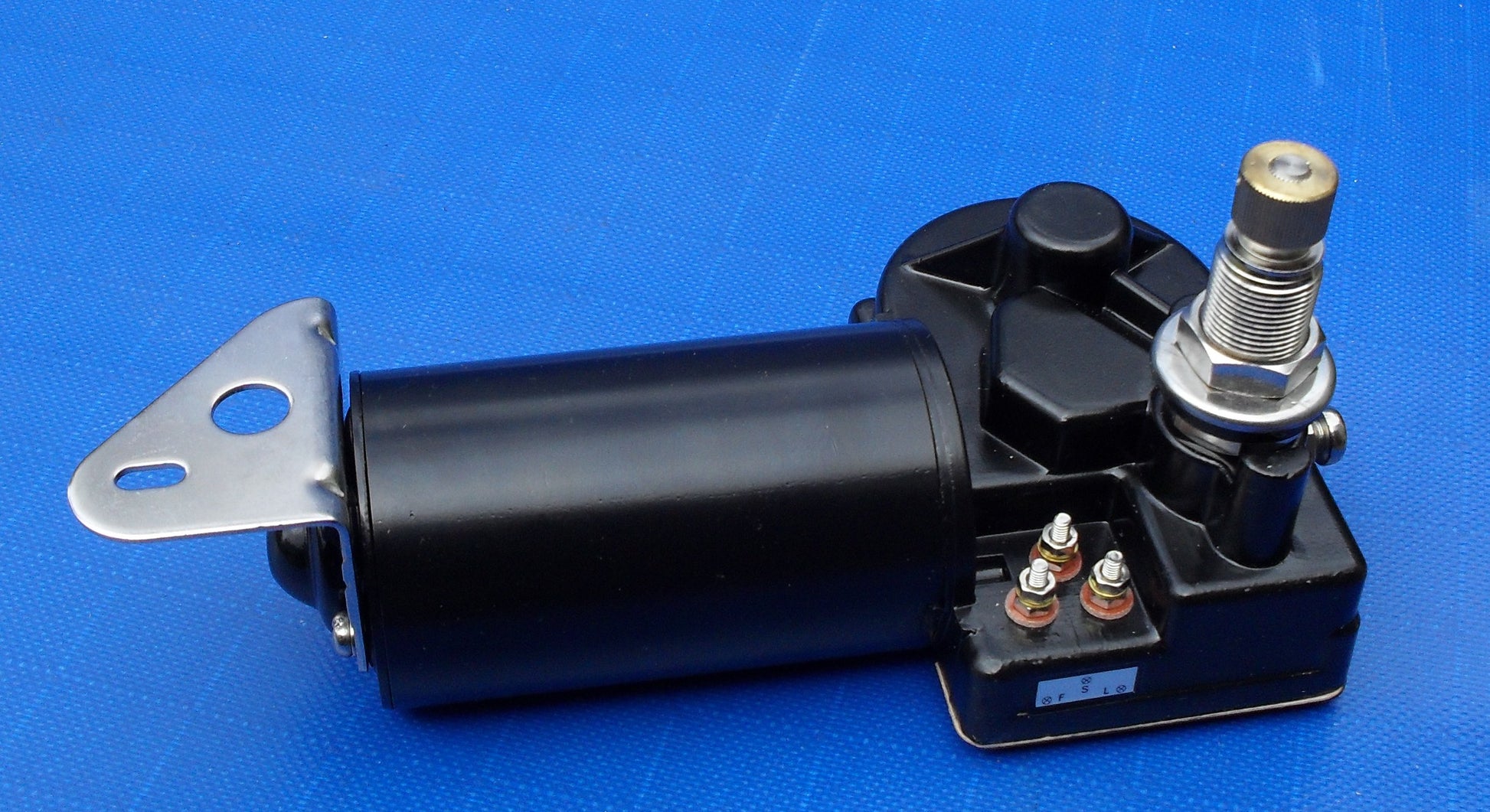

Heavy duty marine wiper motor 12volt

Heavy Duty marine wiper motor. 2 speed. Self parking. Available in 25.4 mm or 50mm

This wiper motor has a substantial stall torque of 100kg /cm. It has 2 speed settings and is self parking.
The self parking is set to the right; however it can be adjusted to park on the left.
The sweep angle is set at 110 degrees; however it can be adjusted to three other optional settings; 83, 100, and 120 degrees.
Full instructions on parking and sweep adjustments included.
The shaft length refers to the thread length on the drive shaft. This is the part that goes through the bulkhead adjacent to the windscreen.

The shaft is splined and wiper blades and arms are available

Suits arms part numbers 10069/70 and 100334/5
Suits wiper blades part numbers 10073/4/5 and 10336/7/8
Motor 12 volts,
1.5 amp
Shaft thread diameter 16mm
Shaft length 25mm. Will fit up to 15mm bulkhead
Spline diameter 13.5mm
Dimensions; 200mm width, 100mm height,
Depth behind the screen 52mm
Weight 1.2 Kilos

Part Number 10275/10292
