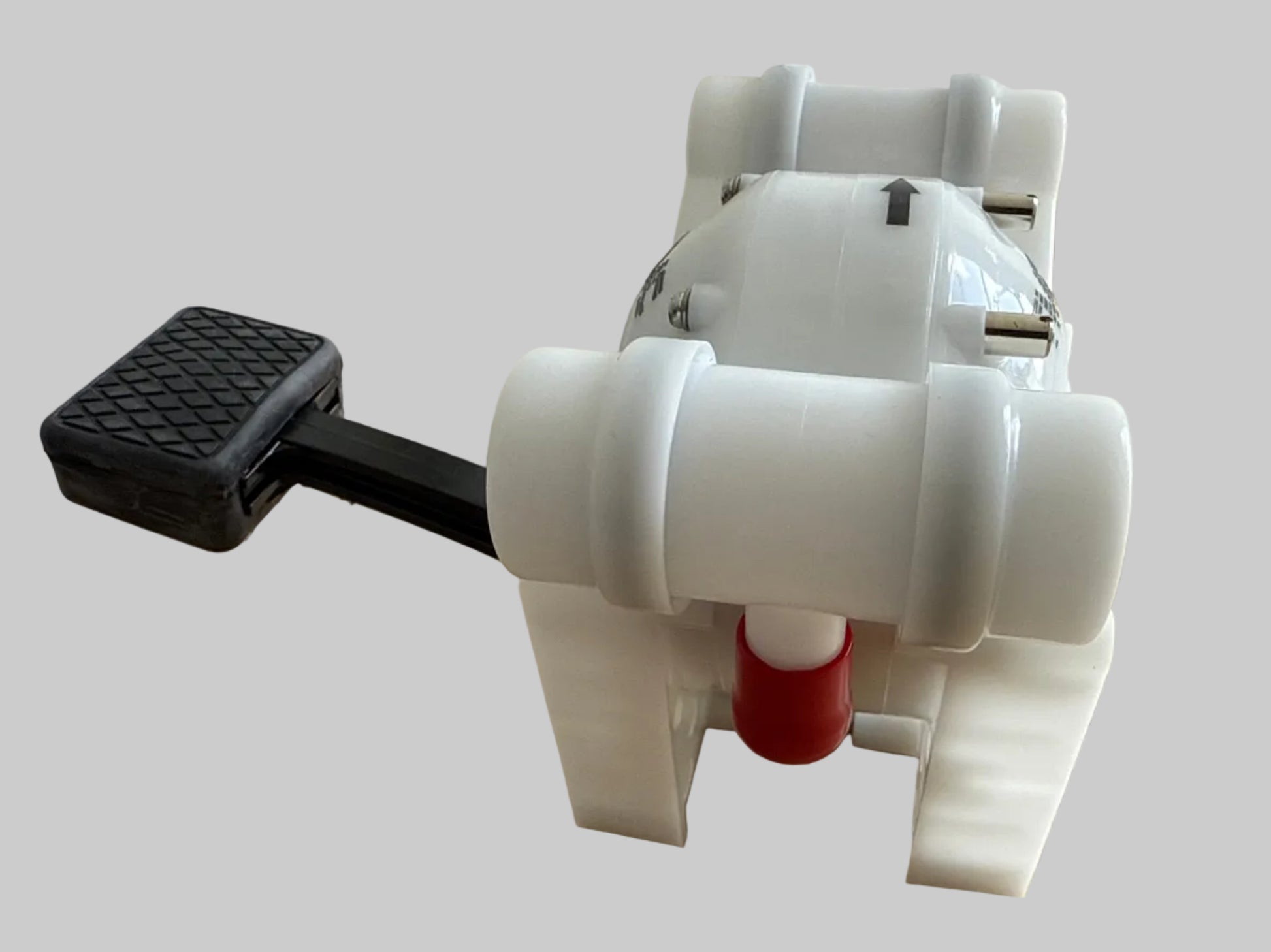

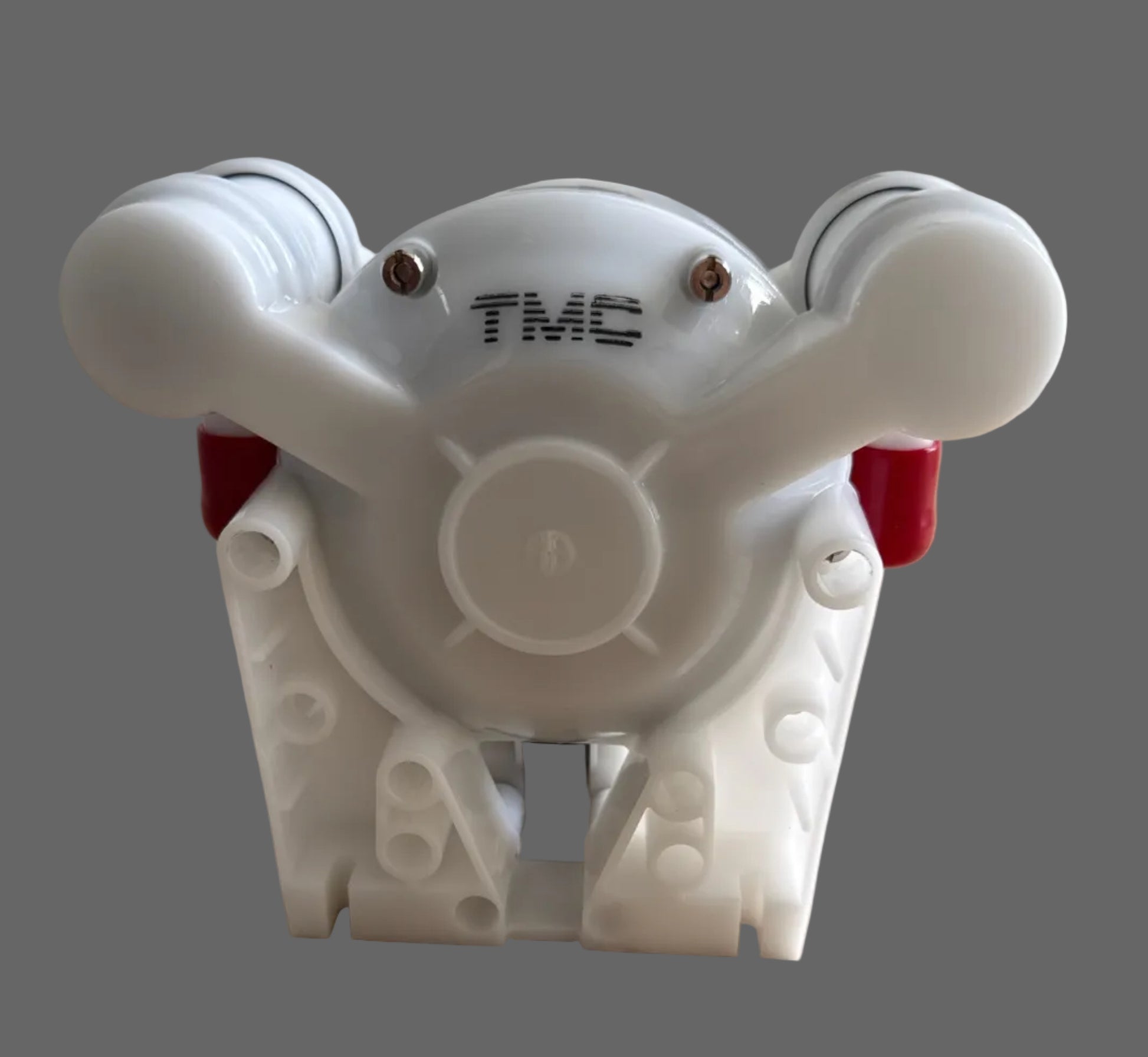

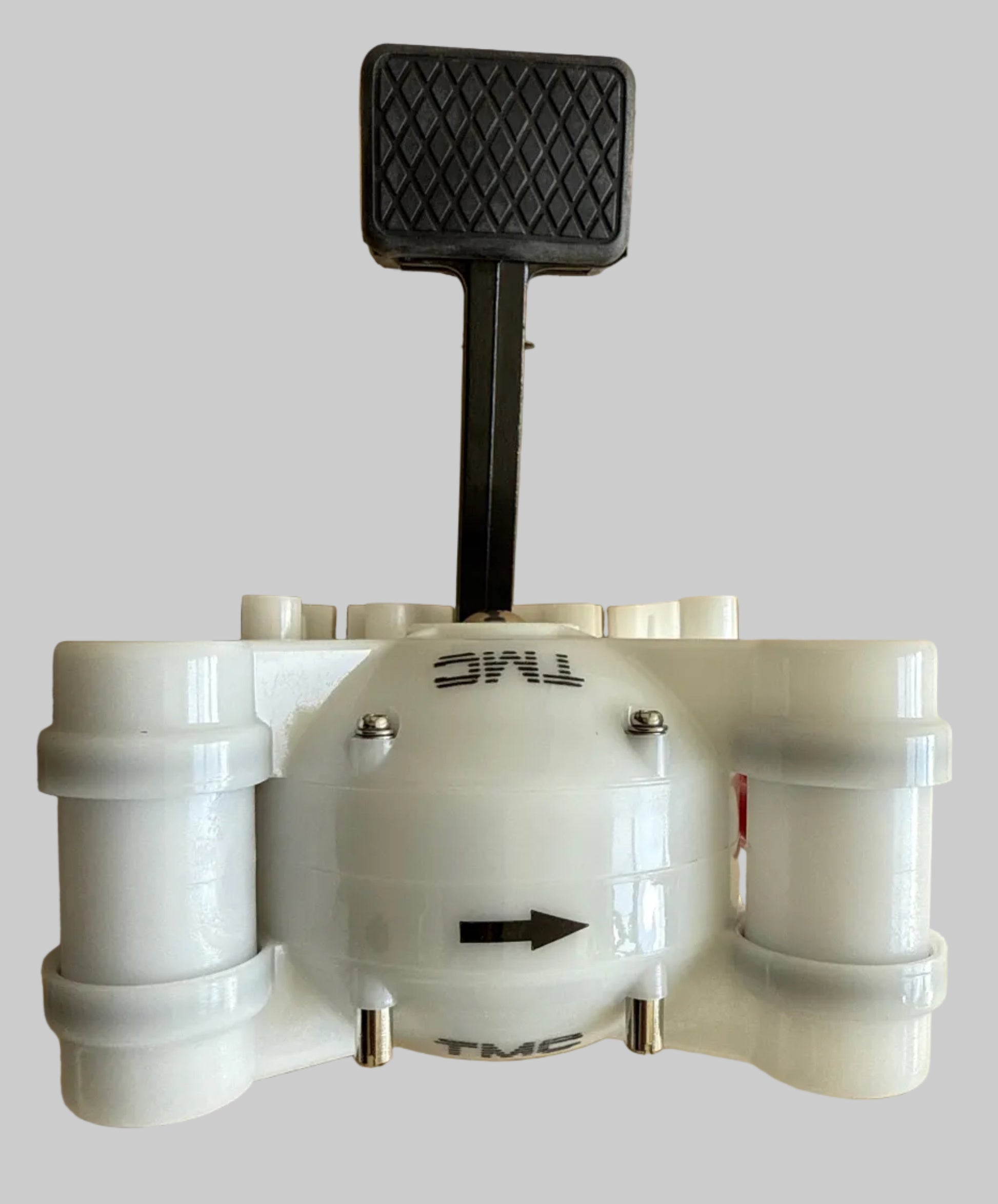

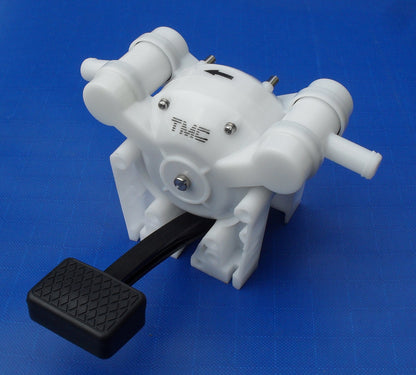

Galley Foot Pump

Self priming double action.

Popular replacement for older style galley foot pumps. Can be mounted above the tank. Mounts on the floor beneath the sink in a locker with just the pedal protruding.

Double action provides smoother flow and greater volume. Giving you a constant supply of water without using any battery power.

Inlet and outlet adjust through 210 degrees to suit your hose configuration. Four mounting holes at 75mm centres.


Capacity 908 litres per hour.
Maximum lift 4 metres
Suits hose diameter 12.5mm
Width 152mm
Height 124mm
Depth pump only 90mm
Depth including pedal 237mm
Mounting footprint 90 x 90mm
Weight 1 kg

Part no; 10273 C2
