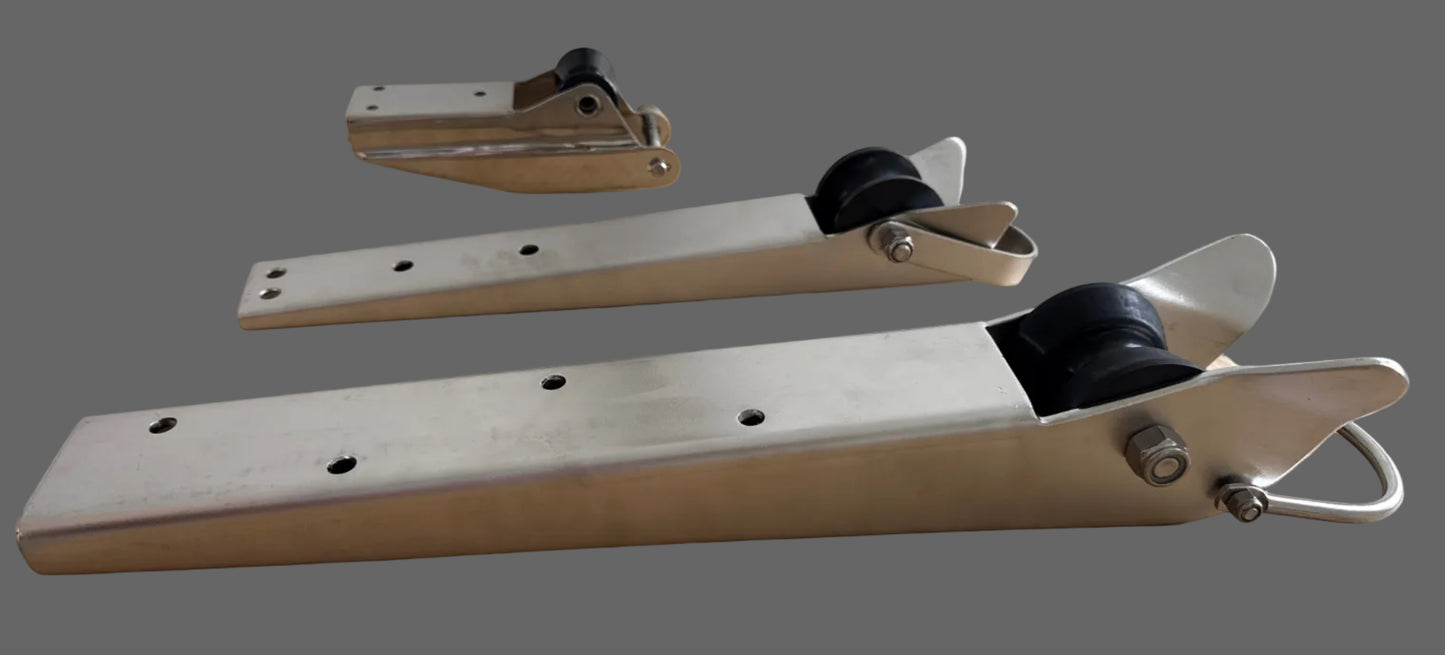

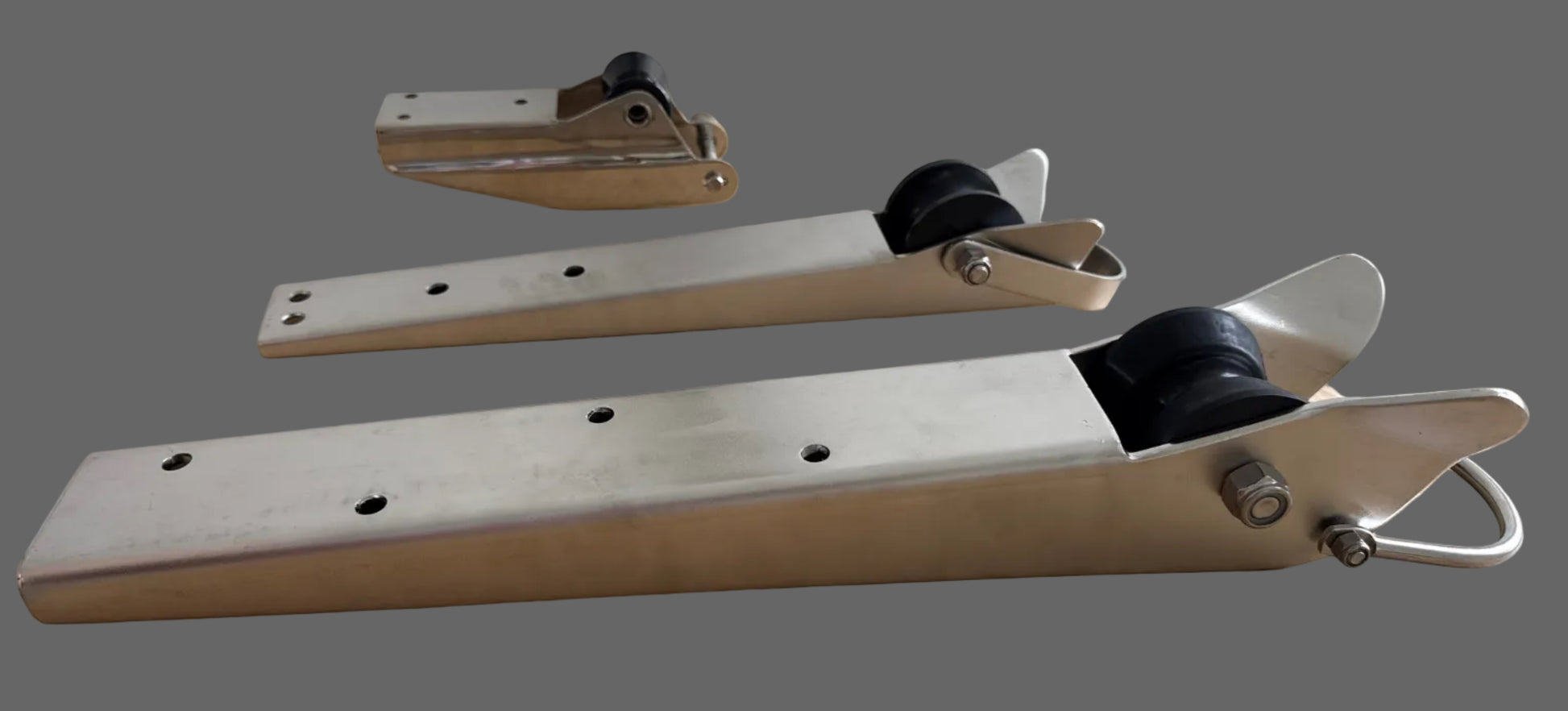

Bow/Anchor Roller - 304 SS

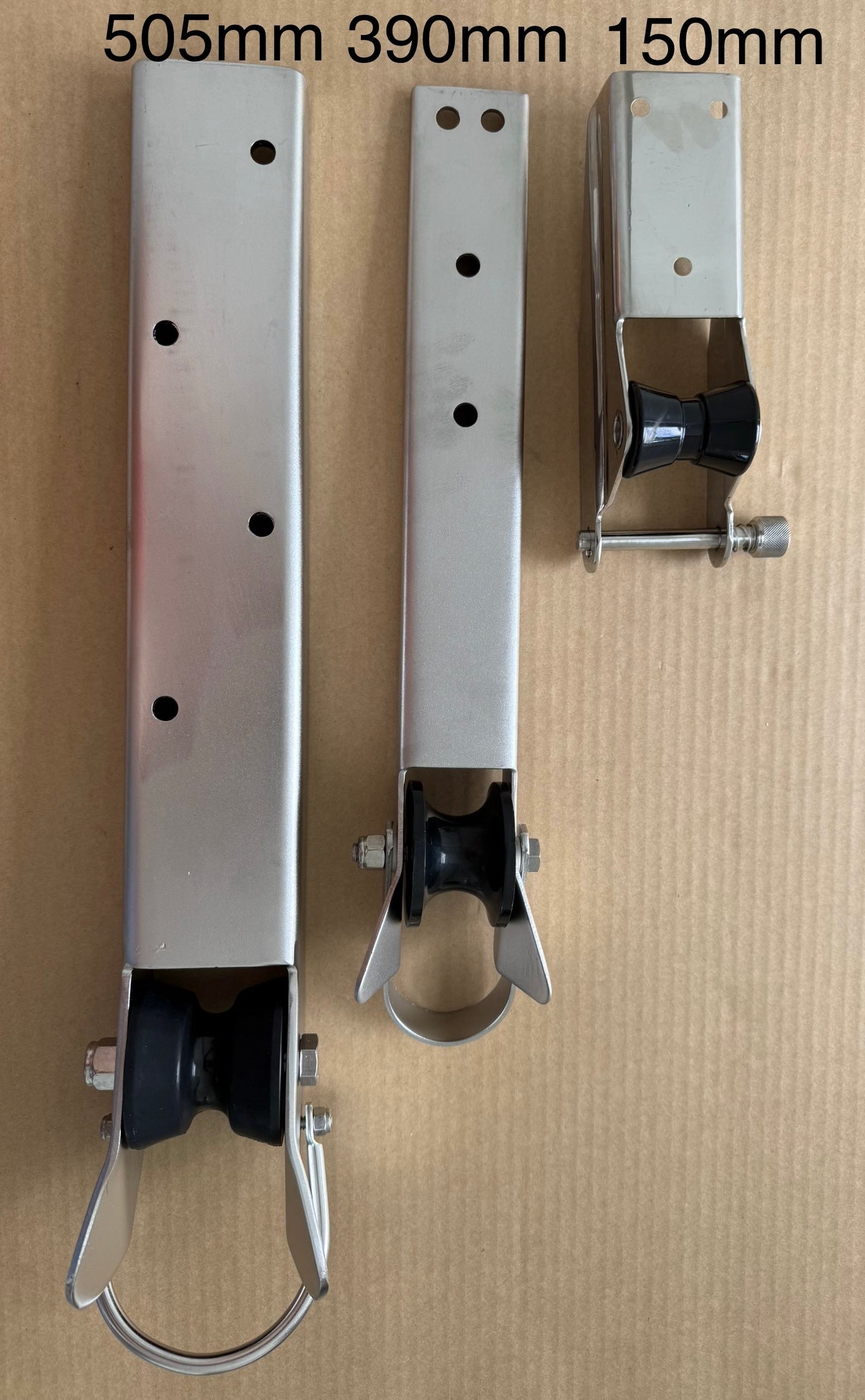

Bow/Anchor Roller with heavy duty 304 stainless steel body with a rubber roller available in four sizes

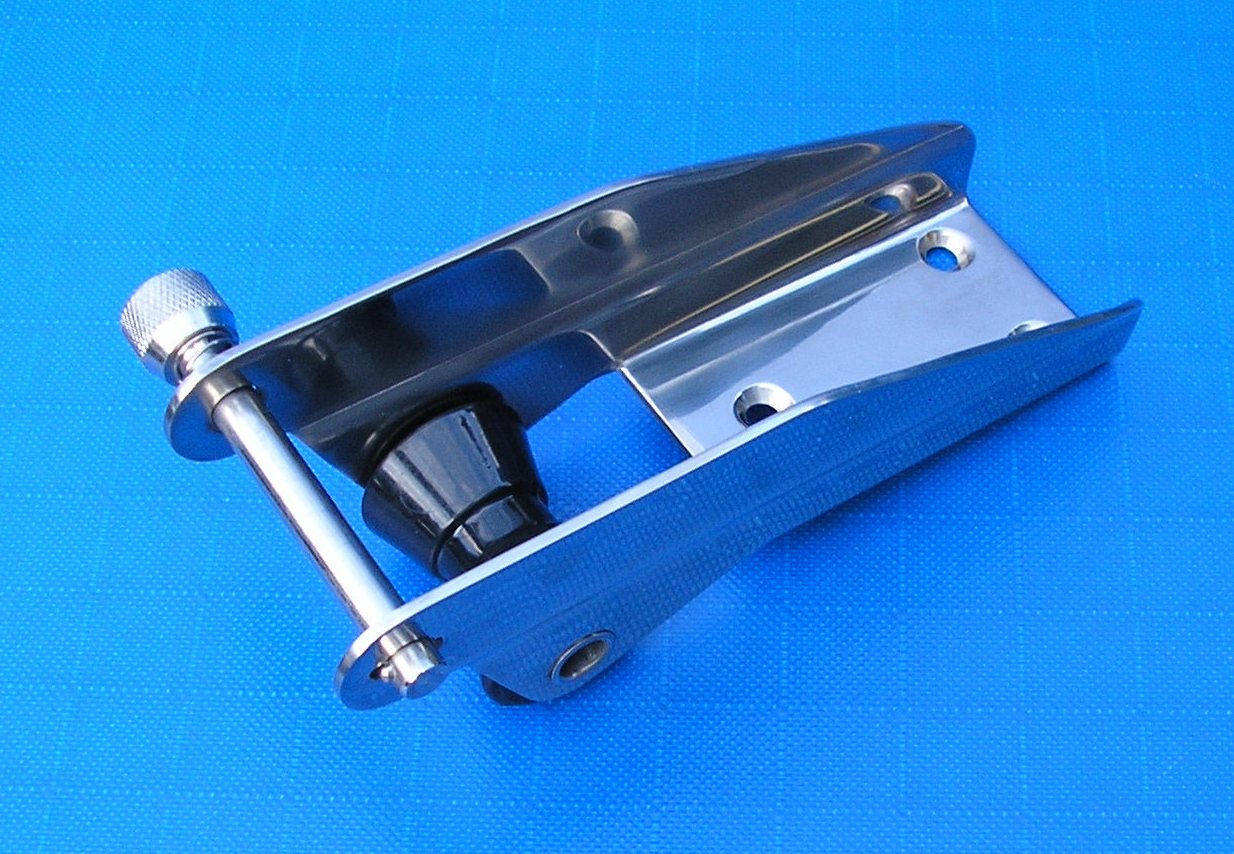

150mm

Suitable for small craft with anchor rope up to 1/2 inch, 12mm diameter. Complete with spring loaded retaining pin.
Three 6mm mounting holes provided. Two at 15mm from the back end of the base plate, one at 75mm from the back end of the base plate.

Overall length 190mm
Main body width 65mm
Main body width internal 50mm
Height above deck 55mm
Plate thickness 2.5mm
Base plate length 96mm
Base plate width 50mm
Roller diameter 38mm
Roller width 50
Weight 625 grams

390mm
Suitable for medium-sized craft with anchor rope up to 1 inch, 25mm diameter. Complete with hoop anchor guide. Splayed front cheeks to accept anchor
Four 10mm mounting holes provided. Two at 14mm from the back end of the base plate, one at 77mm and one at 140mm from the back end of the base plate.

Overall length 390mm
Main body width 52mm
Main body width internal 46mm
Splayed checks width 87mm
Height aft of roller37mm
Plate thickness 3mm
Base plate length 292mm
Clearance from hoop to inner roller 76mm
Roller outer diameter 63mm
Roller inner diameter 33mm
Roller width 43mm
Weight 985grams

505mm
Suitable for medium to large sized craft with anchor rope up to 11/2 inch, 38mm and chain up to 13mm diameter. Complete with hoop anchor guide.
Four 10 mm mounting holes provided all 16mm from side. Two on right at 35mm and 187mm from the back end of the base plate. Two on left at 112mm and 263mm from the back end of the base plate.

Overall length 505mm
Main body width 74mm
Main body width internal 65
Splayed checks width 98mm
Height aft of roller54mm
Plate thickness 4.5mm
Base plate length 370mm
Clearance from hoop to inner roller 115mm
Roller outer diameter 68mm,
Roller inner diameter 38mm
Roller width 60mm
Weight 2.8 kilos

570mm

Suitable for medium to large sized craft with anchor rope up to 1/12 inch, 38mm and chain up to 13mm diameter. Complete with hoop anchor guide.
Four 10 mm mounting holes provided all 31mm from side. Two at 20mm from the back end of the base plate. Two at 203mm from the back end of the base plate.

Overall length 570mm
Main body width 95mm
Main body width internal 86
Splayed checks width 131mm
Height aft of roller 46mm
Plate thickness 4.5mm
Base plate length 462mm
Clearance from hoop to inner roller 125mm
Roller outer diameter 76mm,
Roller inner diameter 39mm
Roller width 83mm
Weight 3.3 kilos
