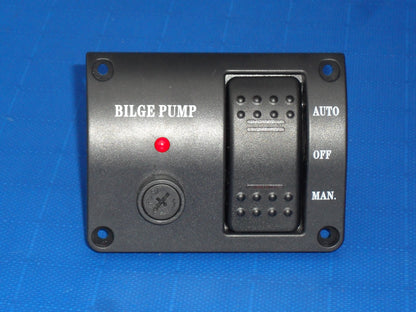

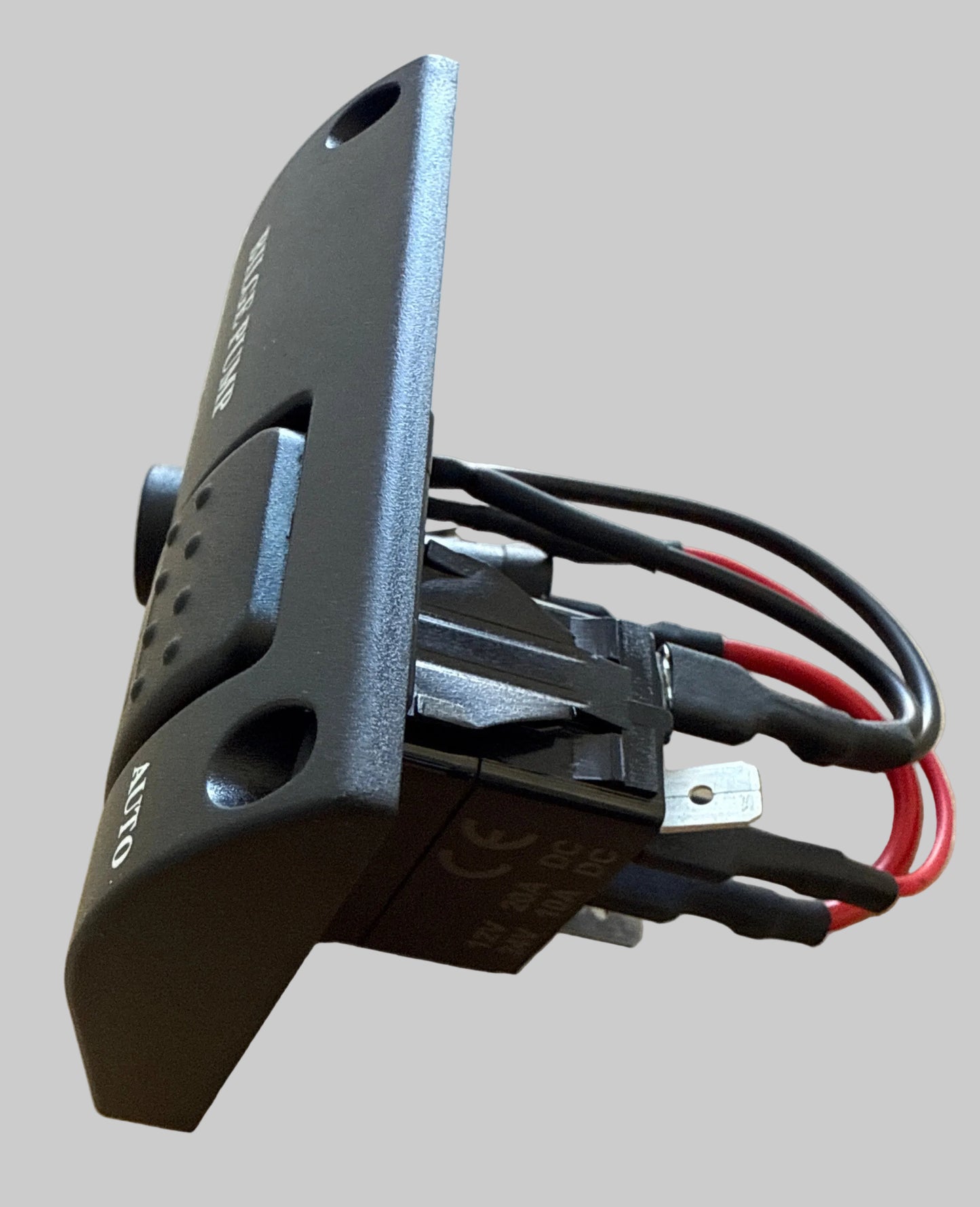

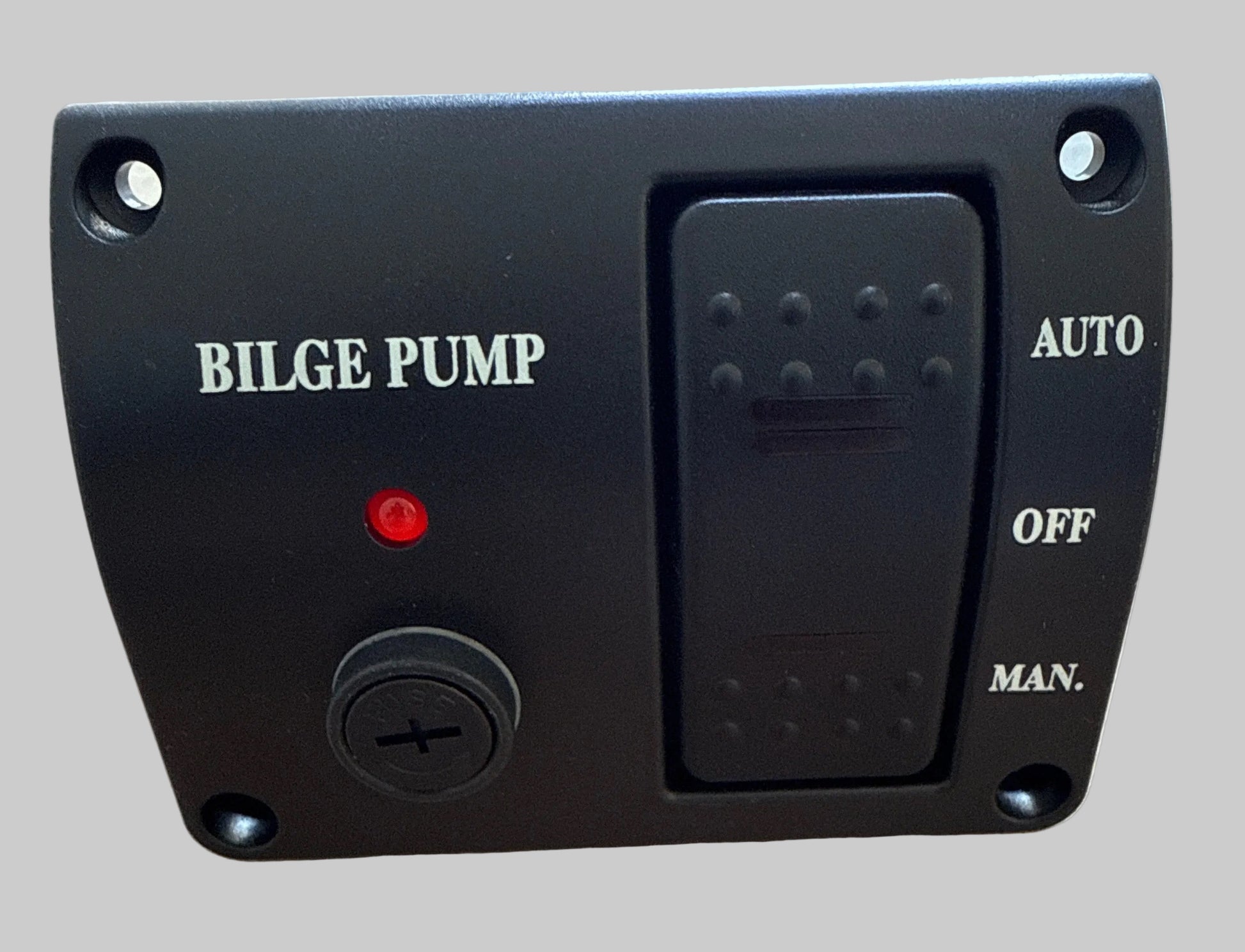

Bilge pump switch panel 12 or 24 Volt

3 way weatherproof switch for automatic bilge pumps or bilge pumps with float switches.
Position 1: Allows bilge pump to be on automatic.
Position 2: Bypasses the automatic operation and operates the pump without the float switch.This is a moment position and needs to be held on to operate.
Position 3: Off.
Red light indicates when on. Built in easy change fuse. Supplied with 20amp glass fuse.
Complete with wiring diagram, fixing screws and cable connectors.

12 volts 20amps.
24 volts 10amps
Colour Black
Height 62mm
Width 82mm
Depth required behind for wiring 70mm
Weight 65grams

Part no; 10325    A
