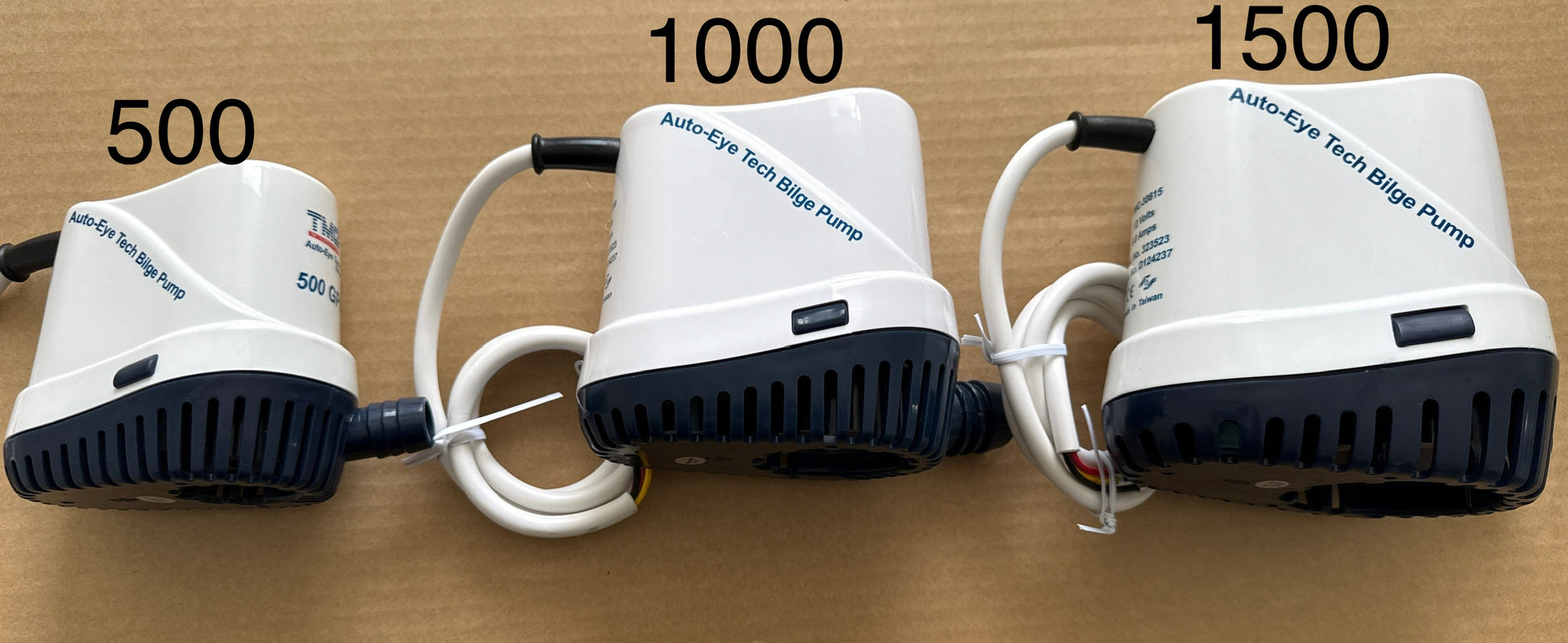

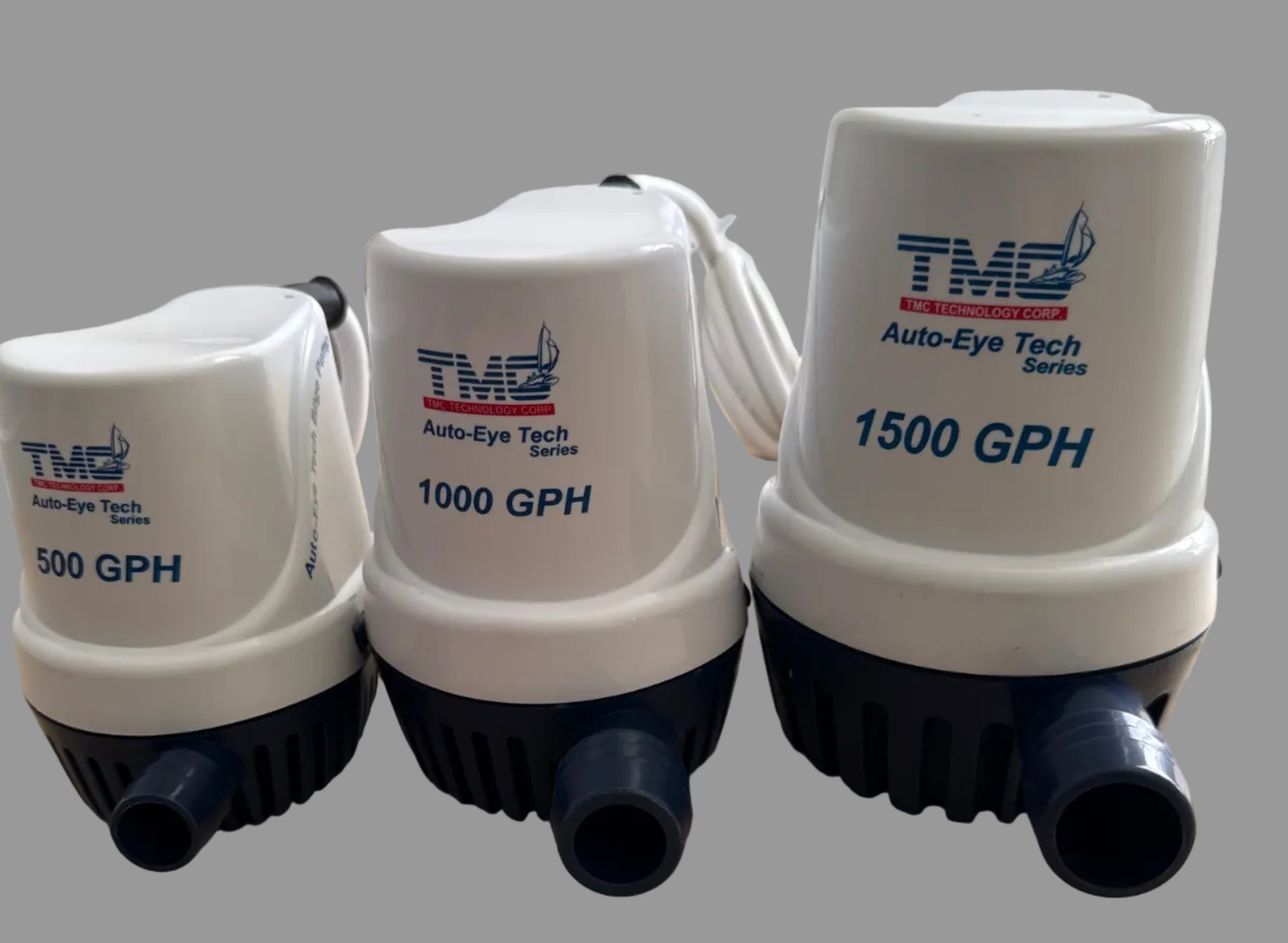

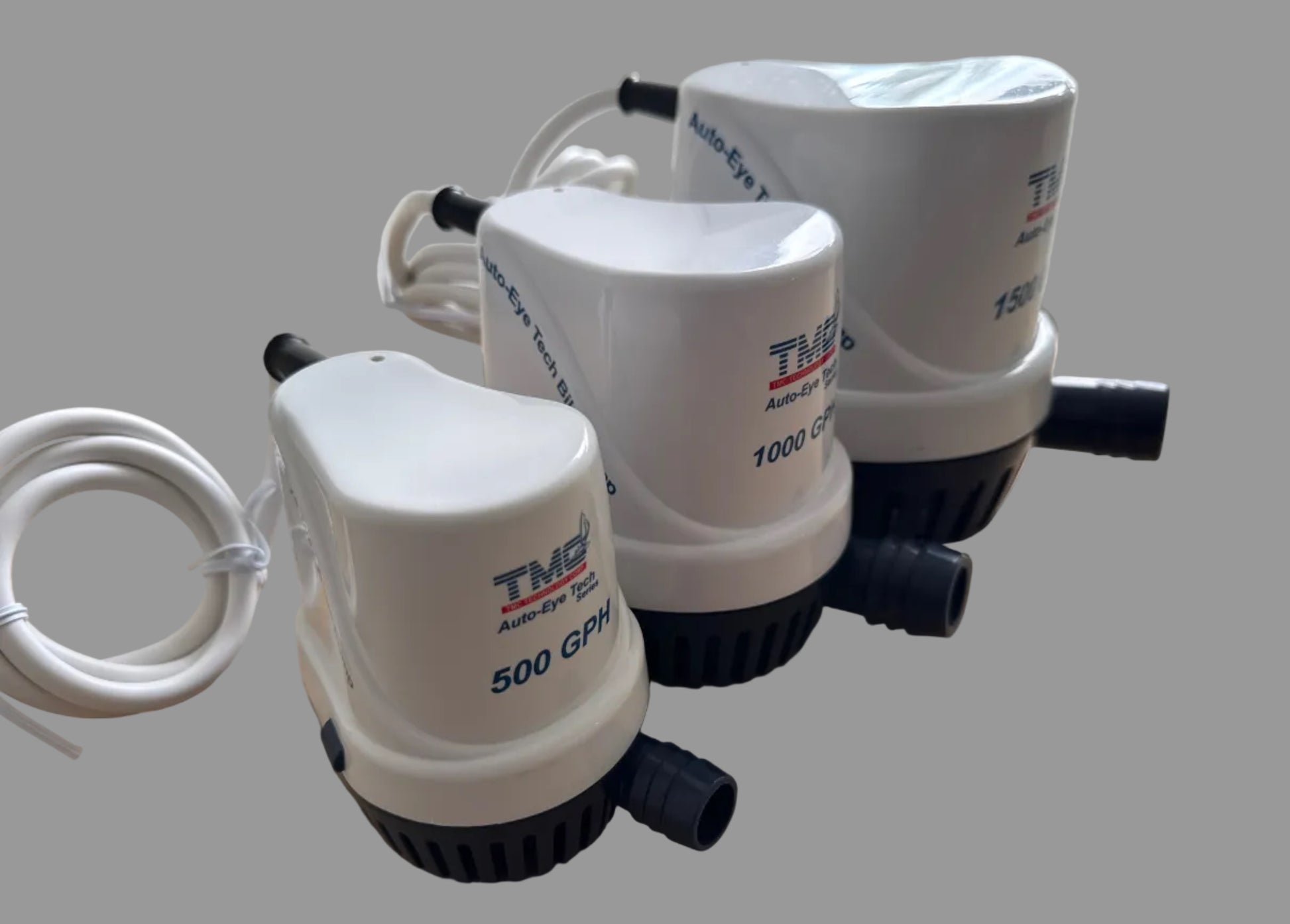

Bilge pump Automatic

Latest technology from the leaders in leisure craft marine pumps, TMC.

This Pump is fully automatic. When the water rises in the bilge the electronic reed turns the pump on. When the water level falls the reed turns the pump off. Unlike some earlier models the pump uses no power whilst in the standby position.

The pump is built with a compact, efficient long life motor, rust corrosion resistant stainless steel shaft and a high impact durable housing. Quick release strainer base unclips for easy cleaning.

The pump comes wired to allow the automatic feature to be bypassed if necessary. Wiring diagram and full instructions supplied.
Complete with a 90cm cable and Stainless steel fixing screws & washers. Fully submersible

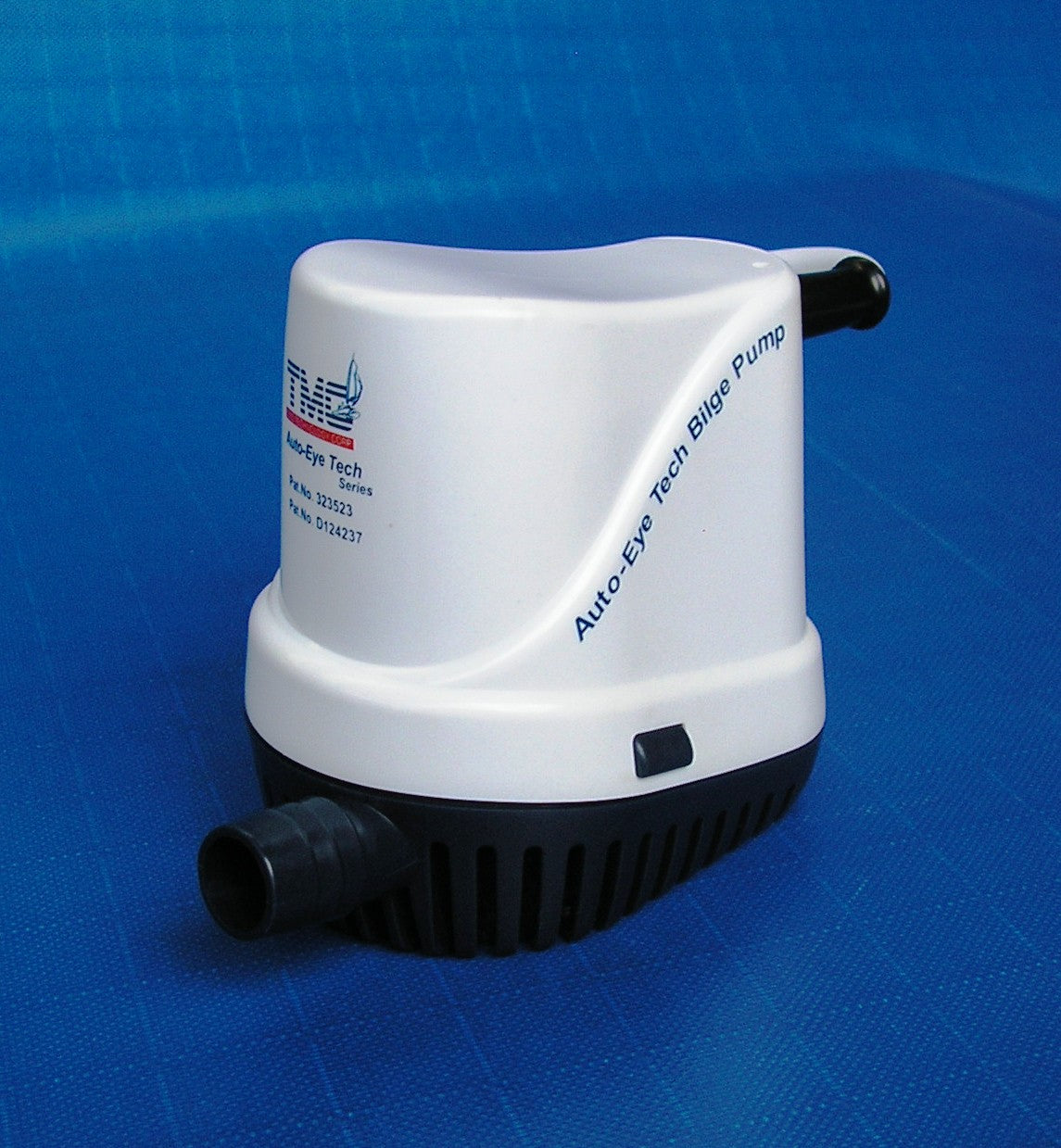

500 GPH
Maximum lift 2.5 metres
Hose outlet diameter 18mm
12 volts, 1.6 amps
Height 110mm. Width 82mm
Length (Including hose tail) 136mm
Weight 440 grams

Part no; 10242 B

1000 GPH
Maximum lift 4 metres
Hose outlet diameter 25mm
12 volts, 4.5 amps
Height 130mm. Width 96mm
Length (Including hose tail) 165mm
Weight 800 grams

Part no; 10270 B

1500 GPH
Maximum lift 4 metres
Hose outlet diameter 25mm
12 volts, 9 amps
Height 150mm. Width 110mm
Length (Including hose tail) 190mm
Weight 1.3 Kilos

Part no; 10320 C
